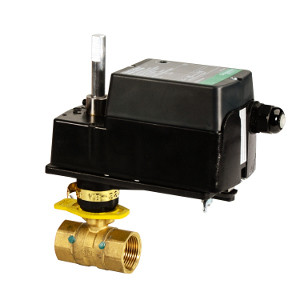

Valve Assembly:
- Body Size: 1-1/4 in
- Configuration: 2-Way
- Type: Ball
- Connection: NPT
- Material Trim: Stainless Steel
- Flow Coefficient: 14.9 cv
- Close-Off Pressure: 70 PSI
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 0 to 10 VDC
- Loss of Power Type: Non-Spring Return
- Loss of Power Position: Fail in place
- Power Input Voltage: 24 VAC
- Leads and Connections: 3 ft Plenum
- Torque: 35 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 2 Assembly Components:
- Valve Body: VB-2253-500-9-43
- Valve Linkage: Linkage included with valve body
- Actuator: MS41-6043
- Actuator Range: SmartX Product Alert: Not for use with steam.
Brand: Schneider Electric
SKU: VS-2253-505-9-43
Product Literature:
