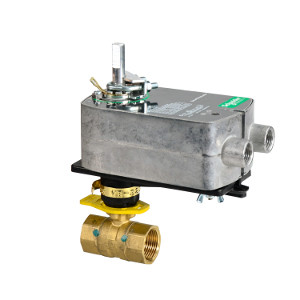

Valve Assembly:
- Body Size: 1-1/4 in
- Configuration: 2-Way
- Type: Ball
- Connection: NPT
- Material Trim: Stainless Steel
- Flow Coefficient: 36.5 cv
- Control Media: Glycol 25-50% and Water
- Close-Off Pressure: 70PSI
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 2 to 10 VDC or 4 to 20 mAdc
- Loss of Power Type: Spring Return
- Power Input Voltage: 22 to 30 VDC, 24 VAC, 24 VDC
- Leads and Connections: 3 ft Plenum
- Torque: 35 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 2
- Product Line: Schneider Electric
- Product Range: SmartX Actuator
- Product Series: Mx4x-7xxx
- Actuator Use: Dampers, Globe Valves Assembly Components:
- Valve Body: VB-2253-500-9-44
- Actuator: MS40-7043
- Actuator Range: SmartX Actuator
Brand: Schneider Electric
SKU: VS-2253-526-9-44
