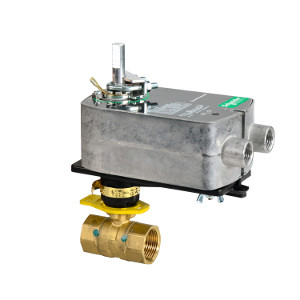

Valve Assembly:
- Body Size: 1-1/4 in
- Configuration: 2-Way
- Type: Ball
- Connection: NPT
- Material Trim: Stainless Steel
- Flow Coefficient: 36.5 cv
- Close-Off Pressure: 70 PSI
- Actuator Type: Electric
- Control Signal: 2-Position (On/Off)
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally open
- Power Input Voltage: 120 VAC
- Leads and Connections: 3 ft Appliance
- Torque: 35 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 2 Assembly Components:
- Valve Body: VB-2253-500-9-44
- Valve Linkage: Linkage included with valve body
- Actuator: MA40-7040
- Actuator Range: SmartX
- Actuator Comment: Actuator mounted left side up Product Alert: Not for use with steam.
Brand: Schneider Electric
SKU: VA-2253-532-9-44
Product Literature:
