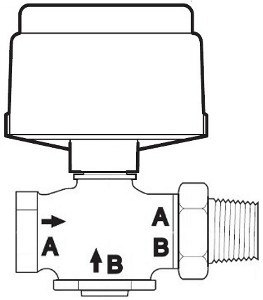

Schneider Electric VK-7221-203-4-09

Valve Assembly: |Body Size: 1-1/4 in |Configuration: 2-Way |Type: Globe |Body Pattern: Straightway |Connection: NPT |Stem Flow Action: Stem up A closed |Material Trim: Brass |Flow Coefficient: 20 cv |Close-Off Pressure: 15 PSI |Actuator Type: Pneumatic |Control Signal: 2-Position (On/Off), Proportional |Control Spring Range: 3 to 7 PSIG, 5 to 10 PSIG, 8 to 13 PSIG |Loss of Power Type: Spring Return |Loss of Power Position: Normally closed |Leads and Connections: 1/8 in Air NPT |Mechanical Movement: Linear |Protection Rating: NEMA 1 Assembly Components:|Valve Body: VB-7221-0-4-09 |Valve Range: Venta |Valve Linkage: AV-7400 |Actuator: MK-2690 |Actuator Comment: Comes with an 8 to 13 PSIG spring
