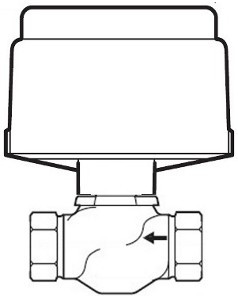

Valve Assembly:
- Body Size: 1/2 in
- Configuration: 2-Way
- Type: Globe
- Body Pattern: Straightway
- Connection: NPT
- Stem Flow Action: Stem up A open
- Material Trim: Brass
- Flow Coefficient: 2.9 cv
- Close-Off Pressure: 130 PSI
- Actuator Type: Pneumatic
- Control Signal: 2-Position (On/Off), Proportional
- Control Spring Range: 3 to 7 PSIG, 5 to 10 PSIG, 8 to 13 PSIG
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally closed
- Leads and Connections: 1/8 in Air NPT
- Mechanical Movement: Linear
- Protection Rating: NEMA 1 Assembly Components:
- Valve Body: VB-7263-0-4-30
- Valve Range: Venta
- Valve Linkage: AV-7400
- Actuator: MK-2690
- Actuator Comment: Comes with a blue 8 to 13 PSIG spring
Brand: Schneider Electric
SKU: VK-7263-203-4-30
