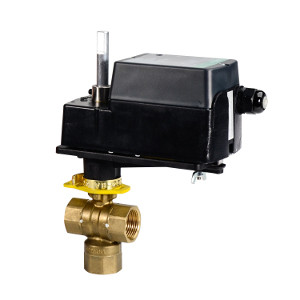

VS-2313-821-9-04

$383.72
(No reviews yet) Write a Review
SKU:
VS-2313-821-9-04
Adding to cart… The item has been added
BV .5IN 3W 2.4CV PR SR 24V
Product Or Component Type :
Valve-actuator assembly
Rotation :
93 °
Seat Leakage :
Port A: Class IV (0.01 %)
Stem Movement :
Rotary
Temperature Ambient Operating Range :
-22…140 °F (-30…60 °C)
Temperature Range Fluid :
19…250 °F (-7…121 °C)
Temperature Shipping and Storage Range :
-40…160 °F (-40…71 °C)
Valve Product Range :
VB-2xxx
Valve Product Series :
VB-2300
Valve Type :
Ball
[Us]ratedsupplyvoltage :
20...30VDC, 24VAC
ActuatorProductRange :
SmartXActuator
ActuatorProductSeries :
MS4D-7xxx
ActuatorType :
Electric
analogueinputrange :
2...10VDC
AuxiliarySwitch :
No
BodySize :
15mm(1/2in)
BySchneider :
Yes
Close-OffPressure :
345kPa, 50psi
ConduitConnection :
1/2in
Configuration :
3-WayMixing/Diverting
ConnectionType :
NPT
ControlSignal :
Proportional/Modulating
CurrentConsumption :
120mA
FeedbackSignal :
2to10VDC
FinalResultforConnectable :
Notconnectable
FinalResultforFlywheelperformancetracking :
Notconnectable
FlowCharacteristic :
EqualPercentage
FlowCoefficient :
2.08kvs, 2.4cv
Hold-InPowerConsumptionInW :
1.4W
IndivisibleSaleQty :
1
InsulationClass :
ClassII
IPProtectionRating :
IP11
LeadLength :
3ft
LeadsandConnections :
Plenum
LossofPowerPosition :
Normallyopen
LossofPowerType :
Springreturn
Manufacturer :
SchneiderElectric
MaterialBall :
ChromePlatedBrass, Nickel
MaterialBody :
Forgedbrass
MaterialCharacterizingInsert :
Glass-FilledNoryl
MaterialMountingPlate :
Glass-FilledPolymer
MaterialStem :
StainlessSteel
MaterialStemSeal :
EPDMO-Rings
MaterialTrim :
Brass
MechanicalMovement :
Rotary
MotorType :
BrushDCmotor
Override :
Automaticreset
PipeSize :
1/2in
PositionIndicator :
HousingScale
PowerConsumptionRunningVA :
6.1VAAC
PowerConsumptionRunningWatts :
3.4W
PressureAllowableStatic :
360psi
PressureClass :
ANSIclass360
PressureFluidMaxDeltaPNormalLife :
50psi(344.74kPa)
ProductAlert :
Notforusewithsteam.
ProductDestination :
ballvalves, dampers
ProductOrComponentType :
Valve-actuatorassembly
Rotation :
93\xc2\xb0
SeatLeakage :
PortA:ClassIV(0.01%)
StemMovement :
Rotary
TemperatureAmbientOperatingRange :
-22\xe2\x80\xa6140\xc2\xb0F(-30\xe2\x80\xa660\xc2\xb0C)
TemperatureShippingandStorageRange :
-40\xe2\x80\xa6160\xc2\xb0F(-40\xe2\x80\xa671\xc2\xb0C)
ValveProductRange :
VB-2xxx
ValveProductSeries :
VB-2300
ValveType :
Ball
