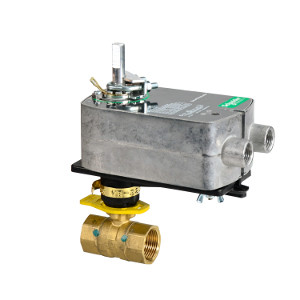

Valve Assembly:
- Body Size: 1 in/li>
- Configuration: 2-Way
- Type: Ball
- Connection: NPT
- Material Trim: Stainless Steel
- Flow Coefficient: 15.3 cv
- Close-Off Pressure: 100 PSI
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally closed
- Power Input Voltage: 24 VAC or 22 to 30 VDC
- Leads and Connections: 3 ft Plenum
- Torque: 35 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 2 Assembly Components:
- Valve Body: VB-2253-500-9-23
- Valve Linkage: Linkage included with valve body
- Actuator: MS40-7043
- Actuator Range: SmartX
- Actuator Comment: Actuator mounted right side up Product Alert: Not for use with steam.
Brand: Schneider Electric
SKU: VS-2253-526-9-23
