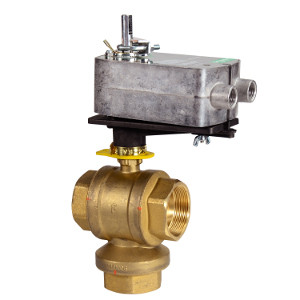

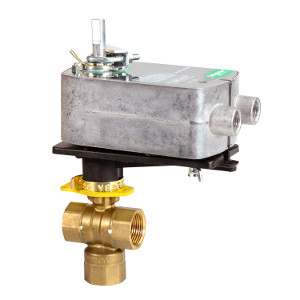

Schneider Electric VA-2313-532-9-63

Valve Assembly: |Body Size: 2 in |Configuration: 3-Way Mixing |Type: Ball |Connection: NPT |Material Trim: Brass |Flow Coefficient: 56.7 cv |Close-Off Pressure: 40 PSI |Actuator Type: Electric |Control Signal: 2-Position (On/Off) |Loss of Power Type: Spring Return |Loss of Power Position: Normally open |Power Input Voltage: 120 VAC |Leads and Connections: 3 ft Appliance |Torque: 35 in-lb |Mechanical Movement: Rotary |Protection Rating: NEMA 2 Assembly Components:|Valve Body: VB-2313-500-9-63 |Valve Linkage: Linkage included with valve body |Actuator: MA40-7040 |Actuator Range: SmartX |Actuator Comment: Actuator mounted left side up Product Alert: Not for use with steam. Full Port Model without characterizing disc.
