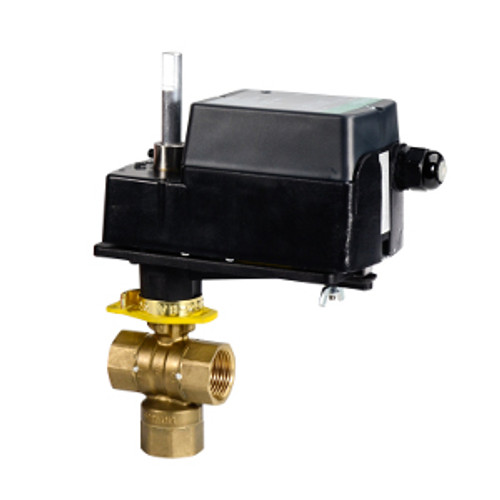

Schneider Electric VA-2313-831-9-16

Valve Assembly: |Body Size: 3/4 in |Configuration: 3-Way Mixing |Type: Ball |Connection: NPT |Material Trim: Brass |Flow Coefficient: 11 cv |Close-Off Pressure: 50 PSI |Actuator Type: Electric |Control Signal: 2-Position (On/Off) |Loss of Power Type: Spring Return |Loss of Power Position: Normally closed |Power Input Voltage: 24 VAC or 20 to 30 VDC |Leads and Connections: 3 ft Plenum |Torque: 30 in-lb |Mechanical Movement: Rotary |Protection Rating: NEMA 2 Assembly Components:|Valve Body: VB-2313-500-9-16 |Valve Linkage: Linkage included with valve body |Actuator: MA4D-8033-100 |Actuator Range: SmartX Product Alert: Not for use with steam. Full Port Model without characterizing disc.
