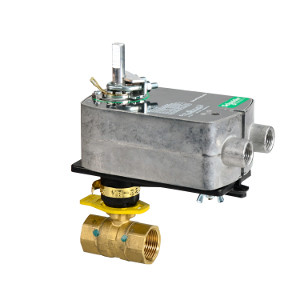

Product pictures shown represent the general type of component listed.The product you select might not exactly match the photo.

VS-2253-536-9-85

$986.22
(No reviews yet) Write a Review
SKU:
VS-2253-536-9-85
Adding to cart… The item has been added
BV 3IN 2W 145CV PR SR 24V
Rotation :
95 °
Rotational Range Adjustment :
40 to 95 degrees
Seat Leakage :
Port A: Class IV (0.01 %)
Stem Movement :
Rotary
Temperature Ambient Operating Range :
-22…140 °F (-30…60 °C)
Temperature Range Fluid :
19…250 °F (-7…121 °C)
Temperature Shipping and Storage Range :
-40…160 °F (-40…71 °C)
Valve Product Range :
VB-2xxx
Valve Product Series :
VB-2200
Valve Type :
Ball
ActuatorComment :
Actuatormountedleftsideup
ActuatorProductRange :
SmartXActuator
ActuatorProductSeries :
Mx4x-7xxx
ActuatorType :
Electric
AuxiliarySwitch :
No
BodySize :
80mm(3in)
BySchneider :
Yes
Close-OffPressure :
483kPa, 70psi
ConduitConnection :
1/2in
Configuration :
2-Way
ConnectionType :
NPT
ControlSignal :
Proportional/Modulating
DutyCycle :
100%
FeedbackSignal :
2to10VDC
FinalResultforConnectable :
Notconnectable
FinalResultforFlywheelperformancetracking :
Notconnectable
FlowCharacteristic :
EqualPercentage
FlowCoefficient :
125.41kvs, 145cv
InsulationClass :
ClassII
IPProtectionRating :
IP11
LeadLength :
3ft
LeadsandConnections :
Plenum
LossofPowerPosition :
Normallyopen
LossofPowerType :
Springreturn
Manufacturer :
SchneiderElectric
MaterialBall :
StainlessSteel
MaterialBody :
Forgedbrass
MaterialCharacterizingInsert :
Glass-FilledNoryl
MaterialMountingPlate :
Glass-FilledPolymer
MaterialStem :
StainlessSteel
MaterialStemSeal :
EPDMO-Rings
MaterialTrim :
StainlessSteel
MechanicalMovement :
Rotary
MotorType :
BrushlessDCmotor
NEMAProtectionRating :
NEMA2
PipeSize :
3in
PositionIndicator :
StrokeIndicatorOnBracket
PowerConsumptionRunningVA :
5.6VAAC
PressureAllowableStatic :
360psi
PressureClass :
ANSIclass360
PressureFluidMaxDeltaPNormalLife :
70psi(482.63kPa)
ProductAlert :
Notforusewithsteam.
ProductDestination :
ballvalves, dampers
ProductOrComponentType :
Valve-actuatorassembly
Rangeability :
877:1
Rotation :
95\xc2\xb0
RotationalRangeAdjustment :
40to95degrees
SeatLeakage :
PortA:ClassIV(0.01%)
StemMovement :
Rotary
TemperatureAmbientOperatingRange :
-22\xe2\x80\xa6140\xc2\xb0F(-30\xe2\x80\xa660\xc2\xb0C)
TemperatureShippingandStorageRange :
-40\xe2\x80\xa6160\xc2\xb0F(-40\xe2\x80\xa671\xc2\xb0C)
ValveProductRange :
VB-2xxx
ValveProductSeries :
VB-2200
ValveType :
Ball
