Schneider Electric VFU-6210-556D-L-14

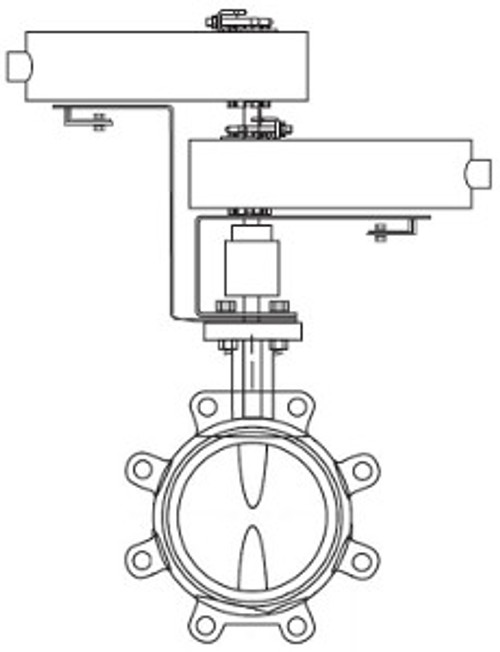

Valve Assembly:

• Body Size: 4 in
• Configuration: 2-Way
• Type: Butterfly
• Connection: Flanged
• Body Style: Lug
• Disc Shape: Undercut
• Material Disc: Ductile Iron - Nylon 11 Coated
• Flow Coefficient: 841 cv
• Close-Off Pressure: 50 PSI
• Actuator Type: Electric
• Control Signal: Floating
• Loss of Power Type: Spring Return
• Loss of Power Position: Normally open
• Power Input Voltage: 24 VAC or 22 to 30 VDC
• Leads and Connections: 3 ft Appliance
• Torque: 133 in-lb
• Mechanical Movement: Rotary
• Additional Features: Dual actuator
• Protection Rating: NEMA 1, NEMA 2 Assembly Components:
• Valve Body: VBU-6200-0-L-14
• Valve Linkage: Included with assembly
• Actuator: MF41-7153+MF41-7153
• Actuator Range: SmartX Actuator
• Actuator Comment: NEMA 1 (IEC IP30). NEMA 2 (IEC IP54) with conduit connector in the down position. Product Alert: Not for use with steam.

Brand: Schneider Electric

SKU: VFU-6210-556D-L-14

Product Literature:

• Download product literature
