Schneider Electric VK-7332-303-4-03

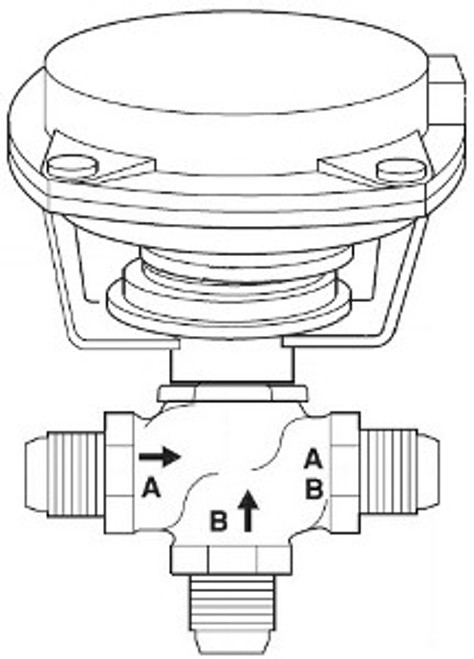

Valve Assembly: |Body Size: 5/8 in |Configuration: 3-Way Sequencing |Type: Globe |Connection: Flare |Stem Flow Action: Stem up flow B to AB |Material Trim: Brass |Flow Coefficient: 2.2 cv |Close-Off Pressure: 35 PSI |Actuator Type: Pneumatic |Control Signal: 2-Position (On/Off), Proportional |Control Spring Range: 10 to 13 PSIG |Loss of Power Type: Spring Return |Loss of Power Position: Stem up, opens B to AB |Leads and Connections: 1/8 in Air NPT |Mechanical Movement: Linear |Protection Rating: NEMA 1 Assembly Components:|Valve Body: VB-7332-0-4-03 |Valve Range: Venta |Valve Linkage: AV-401 |Actuator: MK-4621 Product Alert: Not for use with steam
