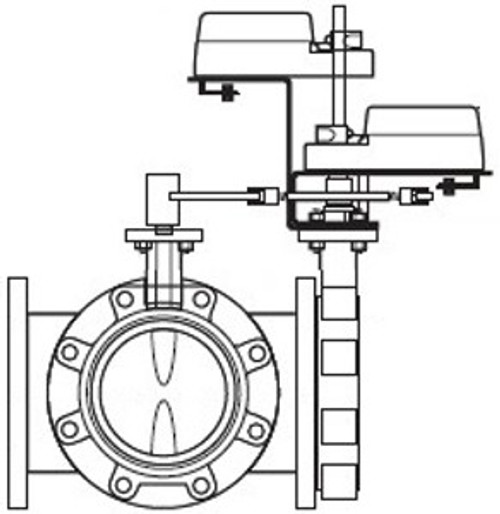

Valve Assembly: |Body Size: 5 in |Configuration: 3-Way Mixing/Diverting |Type: Butterfly |Connection: Flanged |Body Style: Lug |Disc Shape: Undercut |Material Disc: Ductile Iron - Nylon 11 Coated |Flow Coefficient: 1376 cv |Close-Off Pressure: 50 PSI |Actuator Type: Electric |Control Signal: Proportional |Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc |Loss of Power Type: Non-Spring Return |Loss of Power Position: Fail in place |Power Input Voltage: 24 VAC/VDC |Leads and Connections: Terminal Block |Torque: 210 in-lb |Mechanical Movement: Rotary |Auxiliary Switch: 2 SPDT |Additional Features: Dual actuator |Protection Rating: NEMA 2 Assembly Components:|Valve Body: VBU-6301-0-L-15 |Valve Linkage: Included with assembly |Actuator: BRY-NR-2224-541+BRY-NR-2224-542 Product Alert: Not for use with steam.
Product information
BFV 5IN 3W 1376CV PR NSR 24V
- Part number
- VSUS-630C-E25D-L-15
- Workbook reference
- DBPRD_100000069273
- Supplier
- Schneider
- Product group
- Butterfly Valves - US
- Unit of measure
- PCE
- Workbook status
- Active
