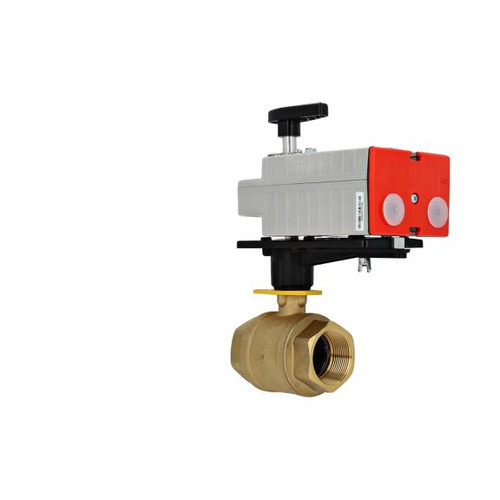

The VBN2 2-Way Control Ball Valves and VBN3 3-Way Control Ball Valves control hot and chilled water with glycol solutions up to 50% in heating, ventilating, and air conditioning (HVAC) systems to provide two-position or modulating functions. These contr"|VBN2E172.00PX+MS8105A1030+FSC--1-1/2in 2-way 172CV Brass Trim+On Off 24 VAC Fail Safe Closed
- Valve Body Material : Brass
- Actuator Voltage : 24V AC/DC
- Actuator Feedback : No Feedback Included
- Maximum Body Pressure Rating : 360pounds per square inch; 2482kilopascal
- Valve Flow Insert Material : Noryl®
- Valve Type : Ball Valve
- Overall Width : 7.27in; 184mm
- Actuator Timing : 45 sec
- Valve Stem Material : Nickel-chrome Plated Brass
- Actuator Control Signal : Two-position SPST
- Actuator Motion : Rotary
- Valve Flow Characteristic : Equal Percentage
- Manual Operation Type : Manual handle integral to actuator bracket
- Valve Ball Material : Nickel-chrome Plated Brass
- Actuator Type : Electric
- Valve Trim : Brass
- Actuator Power Consumption : 5VA
- Overall Height : 10in; 254mm
- Pipe Connection Size : 1.5inch; 40decinewton metre
- Flow Coefficient : 172Cv; 148Kvs
- Close-Off : 689kPa; 100psi
- For Use With : Honeywell Electronic Actuators
- Brand : Honeywell
- Valve Seal Material : Teflon seals with EPDM O-Rings
- Actuator Included : Yes MS8105A1030
- Valve Body Pattern : 2-way
- Valve Series : VBN
- Valve Pressure Rating : 2482kPa; 360psi
- Minimum Medium Temperature : -30°C; -22°F
- Actuator Torque : 44in·lb; 5Nm
- Minimum Ambient Temperature Rating : -20°C; -5°F
- Maximum Medium Temperature : 121°C; 250°F
- Maximum Ambient Temperature Rating : 65°C; 150°F
- Overall Length : 3in; 76mm
- Actuator Enclosure Rating : NEMA 2; IP54
- Actuator Angle of Rotation : 95° ±3°
- Rangeability : 558
- Controlled Medium Restrictions : Not for use with steam or fuels
- Actuator Mounting Hardware : Direct Coupled Actuator (DCA) Bracket 5112-11
- Controlled Medium : Water/Glycol
- Leakage Rating : ANSI Class IV (0.01% of Cv maximum)
- Actuator Fail-Safe Action : Spring Fail-safe
- Valve Connection Type : NPT
- Fail-Safe Action : Fail-safe Closed
- Application : Pressure Dependent
- Control Type : On/Off
- Electrical Connection Type : Terminal Block
- Number Of Auxiliary Switches : 0
- PNC-Display SKU : VBN Series
- Valve Size Diameter : 40DN; 1.5in
- PNC-Selector : Valve+Actuator
- PNC-Type Identification : Assembly
