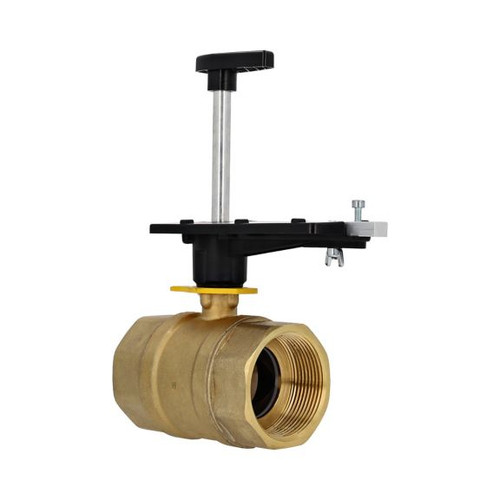

The VBN2 2-Way Control Ball Valves and VBN3 3-Way Control Ball Valves control hot and chilled water with glycol solutions up to 50% in heating, ventilating, and air conditioning (HVAC) systems to provide two-position or modulating functions. These contr"|VBN2G202.00PX--2-1/2in 2-way 202CV Brass Trim DCA Profile
- Valve Body Material : Brass
- Actuator Feedback : No Feedback Included
- Maximum Body Pressure Rating : 360pounds per square inch; 2482kilopascal
- Valve Flow Insert Material : Noryl®
- Valve Type : Ball Valve
- Overall Width : 7.91in; 203mm
- Valve Stem Material : Nickel-chrome Plated Brass
- Valve Flow Characteristic : Equal Percentage
- Manual Operation Type : Manual handle integral to actuator bracket
- Valve Ball Material : Nickel-chrome Plated Brass
- Valve Trim : Brass
- Overall Height : 10.65in; 271mm
- Pipe Connection Size : 65decinewton metre; 2.5inch
- Flow Coefficient : 202Cv; 174Kvs
- Close-Off : 6.89bar
- For Use With : Honeywell Electronic Actuators
- Brand : Honeywell
- Valve Seal Material : Teflon seals with EPDM O-Rings
- Actuator Included : No
- Valve Body Pattern : 2-way
- Valve Series : VBN
- Valve Pressure Rating : 2482kPa; 360psi
- Minimum Medium Temperature : -30°C; -22°F
- Maximum Medium Temperature : 121°C; 250°F
- Overall Length : 89mm; 3.5in
- Rangeability : 877
- Controlled Medium Restrictions : Not for use with steam or fuels
- Actuator Mounting Hardware : Direct Coupled Actuator (DCA) Bracket 5112-11
- Controlled Medium : Water/Glycol
- Leakage Rating : ANSI Class IV (0.01% of Cv maximum)
- Valve Connection Type : NPT
- Application : Pressure Dependent
- Control Type : Modulating; On/Off
- Number Of Auxiliary Switches : 0
- PNC-Display SKU : VBN Series
- Valve Size Diameter : 2.5in; 65DN
- PNC-Selector : Valve+Actuator
