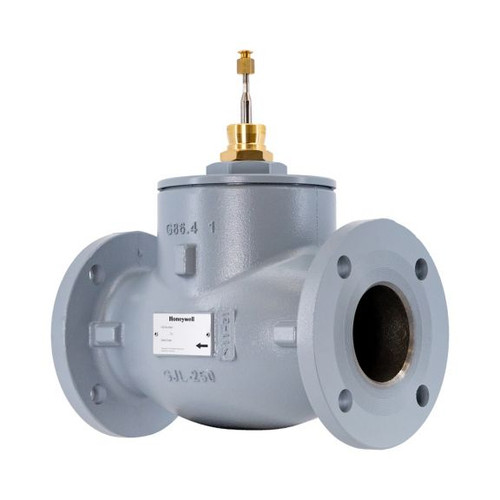

Flanged globe valve: Two-way equal percentage: 3" ANSI-125|GLOBE VALVE - 3 IN. ANSI 125 FLANGED - 2-WAY - 125 CV - STAINLESS STEEL TRIM - EQUAL PERCENTAGE
- Valve Bonnet Size : 1.375in; 35mm
- Brand : Honeywell
- Flow Coefficient : 108Kvs; 125Cv
- Valve Stem Travel : 0.75inch
- Overall Depth : 191mm; 7.5in
- Leakage : ANSI Class III (Less than 0.05% of Cv)
- Actuator Included : No
- Valve Seat Material : Stainless Steel
- Media Restrictions : Not Suitable for Open Loop Systems such as Condenser Water or Potable Water
- Valve Body Pattern : 2-way
- Overall Width : 11.75in; 298mm
- Valve Plug Material : Stainless Steel
- Valve Stem Action : Stem Down to Close
- Flange Rating : ANSI Class 125
- Valve Series : VGF
- Valve Body Material : Cast Iron ASTM A126 Class B
- Pipe Connection Type : Flange
- Application : Commercial HVAC
- Valve Type : Globe Valve
- Overall Height : 346mm; 13.622in
- Pipe Connection Size : 3inch
- Valve Stem Material : Stainless Steel
- Maximum Operating Pressure : 175pounds per square inch
- Valve Flow Characteristic : Equal Percentage
- Controlled Media : 100psi saturated steam
- Minimum Medium Temperature : 20°F; -7°C
- Valve Trim : Stainless Steel
- Steam Pressure Rating : 689kPa; 100psi; 6.9bar
- Valve Stroke : 0.75in; 20mm
- Controlled Medium : Water/Glycol; Steam
- Valve Pressure Rating : 1206kPa; 175psi
- Maximum Medium Temperature : 250°F; 120°C
- PNC-Display SKU : VGF Series
- Valve Connection Type : ANSI 125 Flanged
- PNC-Selector : Valve+Actuator
- Application : Pressure Dependent
- Leakage Rating : 0.05% of Cv (ANSI Class III)
- Control Type : Modulating; On/Off
- Valve Size Diameter : 80DN; 3in
