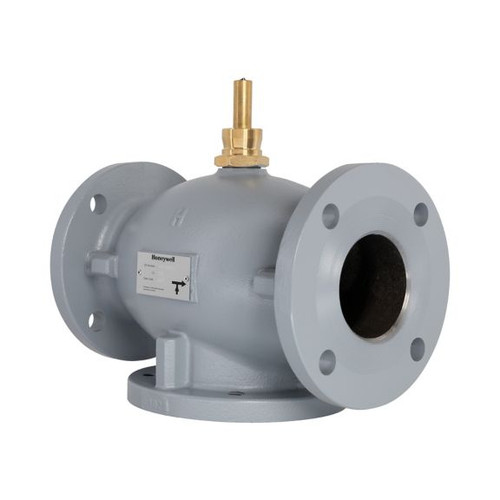

Flanged globe valve: Three-way mixing: equal percentage: 3" ANSI-125|GLOBE VALVE - 3 IN. ANSI 125 FLANGED - 3-WAY MIXING - 120 CV - STAINLESS STEEL TRIM - EQUAL PERCENTAGE
- Valve Bonnet Size : 1.375in; 35mm
- Brand : Honeywell
- Flow Coefficient : 103Kvs; 120Cv
- Valve Stem Travel : 0.75inch
- Overall Depth : 7.5in; 191mm
- Actuator Included : No
- Valve Seat Material : Cast Iron (Body Integrated)
- Media Restrictions : Not Suitable for Open Loop Systems such as Condenser Water or Potable Water
- Valve Body Pattern : 3-way Mixing
- Overall Width : 11.75in; 298mm
- Valve Plug Material : Stainless steel
- Valve Stem Action : Stem Up to Close Port A
- Flange Rating : ANSI Class 125
- Valve Series : VGF
- Valve Body Material : Cast Iron ASTM A126 Class B
- Pipe Connection Type : Flange
- Application : Commercial HVAC
- Valve Type : Globe Valve
- Overall Height : 12.52in; 318mm
- Pipe Connection Size : 3inch
- Valve Stem Material : Stainless steel
- Maximum Operating Pressure : 175pounds per square inch
- Valve Flow Characteristic : Porta A Equal Percentage; Port B Linear
- Controlled Media : Chilled or hot water- up to 60% glycol
- Minimum Medium Temperature : -7°C; 20°F
- Valve Trim : Stainless Steel
- Valve Stroke : 20mm; 0.75in
- Controlled Medium : Water/Glycol
- Valve Pressure Rating : 1206kPa; 175psi
- Maximum Medium Temperature : 250°F; 120°C
- PNC-Display SKU : VGF Series
- Valve Connection Type : ANSI 125 Flanged
- PNC-Selector : Valve+Actuator
- Application : Pressure Dependent
- Leakage Rating : Port A <0.05% of Cv (ANSI Class III); Port B <0.1% of Cv
- Control Type : On/Off; Modulating
- Valve Size Diameter : 80DN; 3in
