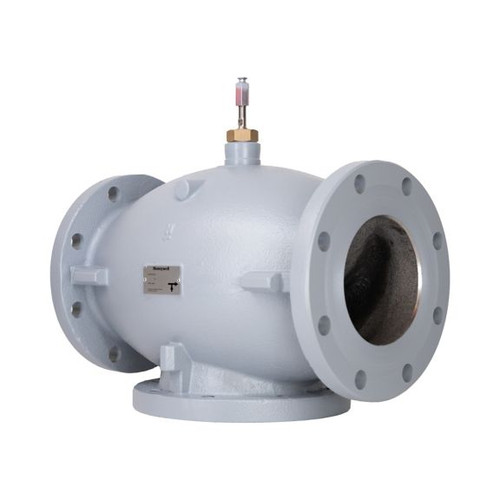

Flanged globe valve: Three-way mixing: equal percentage: 6" ANSI-125|GLOBE VALVE - 6 IN. ANSI 125 FLANGED - 3-WAY MIXING - 370 CV - STAINLESS STEEL TRIM - EQUAL PERCENTAGE
- Valve Bonnet Size : 48mm; 1.875in
- Brand : Honeywell
- Flow Coefficient : 318Kvs; 370Cv
- Valve Stem Travel : 1.5inch
- Overall Depth : 11in; 279mm
- Actuator Included : No
- Valve Seat Material : Cast Iron (Body Integrated)
- Media Restrictions : Not Suitable for Open Loop Systems such as Condenser Water or Potable Water
- Valve Body Pattern : 3-way Mixing
- Overall Width : 17.75in; 451mm
- Valve Plug Material : Stainless steel
- Valve Stem Action : Stem Up to Close Port A
- Flange Rating : ANSI Class 125
- Valve Series : VGF
- Valve Body Material : Cast Iron ASTM A126 Class B
- Pipe Connection Type : Flange
- Application : Commercial HVAC
- Valve Type : Globe Valve
- Overall Height : 19.016in; 483mm
- Pipe Connection Size : 6inch
- Valve Stem Material : Stainless steel
- Maximum Operating Pressure : 175pounds per square inch
- Valve Flow Characteristic : Porta A Equal Percentage; Port B Linear
- Controlled Media : Chilled or hot water- up to 60% glycol
- Minimum Medium Temperature : -7°C; 20°F
- Valve Trim : Stainless Steel
- Valve Stroke : 1.5in; 38mm
- Controlled Medium : Water/Glycol
- Valve Pressure Rating : 1206kPa; 175psi
- Maximum Medium Temperature : 120°C; 250°F
- PNC-Display SKU : VGF Series
- Valve Connection Type : ANSI 125 Flanged
- PNC-Selector : Valve+Actuator
- Application : Pressure Dependent
- Leakage Rating : Port A <0.05% of Cv (ANSI Class III); Port B <0.1% of Cv
- Control Type : Modulating; On/Off
- Valve Size Diameter : 6in; 150DN
