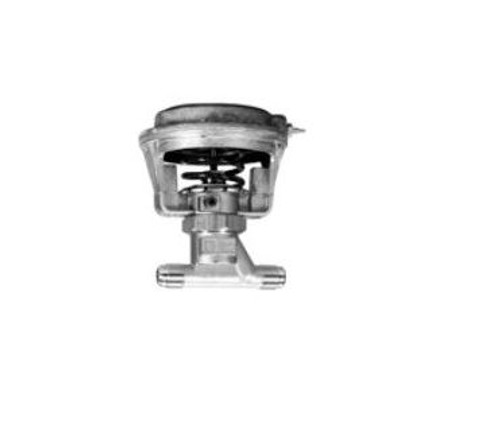

VP512A unit ventilator valves are normally-open, single-seated, straight-through or angled globe valves for proportional control of either steam or hot water in unit ventilators.Features & Benefits:Equal-percentage, high-lift thrott"|Unitary Water Valve: 2-way: Straight-Through: 5/8in Outer Diameter: 2.5Cv: 2.16Kv
- Brand : Honeywell
- Actuator Included : Yes
- Valve Body Pattern : 2-way
- Overall Width : 130mm; 5.13in
- Maximum Diaphragm Pressure : 25psi; 172kPa
- Close-Off : 79 psid at 13 psi; 545 kPad at 90 kPa
- Actuator Spring Range : 3 to 10psi; 21 to 69kPa
- Valve Stem Action : Proportional Normally Open
- Valve Type : Unitary Valve
- Overall Height : 146mm; 5.75in
- For Use With : Direct Acting Thermostat
- Minimum Medium Temperature : 115°F; 46.11°C
- Controlled Medium : Water
- Valve Pressure Rating : 17.2369bar; 250psi
- Actuator Fail-Safe Action : Proportional Normally Open
- Maximum Ambient Temperature Rating : 71°C; 160°F
- Minimum Ambient Temperature Rating : 2°C; 35°F
- Maximum Medium Temperature : 240°F; 115.56°C
