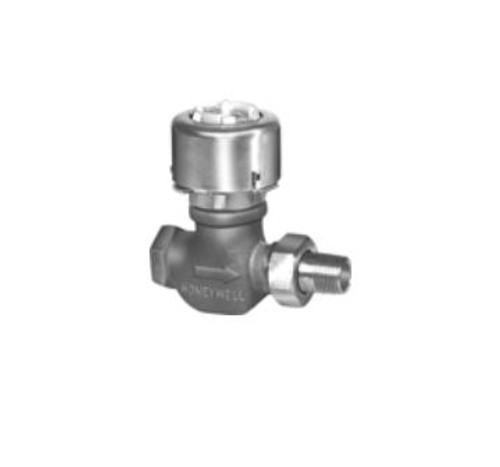

VP512A unit ventilator valves are normally-open, single-seated, straight-through or angled globe valves for proportional control of either steam or hot water in unit ventilators.Features & Benefits:Equal-percentage, high-lift thrott"|Pneumatic Radiator Valve: 2-Way: 1/2in: 0.63Cv: Steam or Water
- Brand : Honeywell
- Valve Body Pattern : 2-way
- Overall Width : 3.75in; 92mm
- Maximum Diaphragm Pressure : 205kPa; 30psi
- Close-Off : 150 psid at 20 psi; 1034 kPad at 138 kPa
- Actuator Spring Range : 3 to 10psi; 21 to 69kPa
- Valve Stem Action : Proportional Normally Open
- Valve Type : Unitary Valve
- Overall Height : 4.875in; 124mm
- For Use With : Electric Actuator
- Minimum Medium Temperature : 40°F; 4.45°C
- Controlled Medium : Water
- Valve Pressure Rating : 150psi; 10.3421bar
- Actuator Fail-Safe Action : Proportional Normally Open
- Maximum Ambient Temperature Rating : 230°F; 110°C
- Minimum Ambient Temperature Rating : 40°F; 4°C
- Maximum Medium Temperature : 115.56°C; 240°F
