Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
- Range of Product : Harmony XAC
- Product or Component Type : Contact block

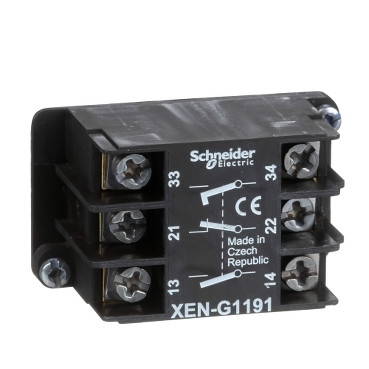

- component name : XENG
- Electrical circuit type : Control circuit
- Contact block application : 2-speed
- Contact block type : Single
- Type of operator : Spring return
- Product Compatibility : XACA, XACA9...head
- Contacts type and composition : 1 NC + 2 NO
- Mounting of block : Front mounting
- contact operation : Slow-break, Staggered
- Mechanical durability : 1000000 cycles
- [Ithe] conventional enclosed thermal current : 10 A
- [Ui] rated insulation voltage : 600 V 3)IEC 60947-1
- [Uimp] rated impulse withstand voltage : 6 kV IEC 60947-1
- Maximum resistance across terminals : 25 MOhm
- operating force : 18 N
- Short-circuit protection : 10 A fuse protection cartridge gG
- Terminals description ISO n°1 : (21-22)NC, (33-34)NO_CL, (13-14)NO
- Net Weight : 0.09 lb(US) (0.04 kg)
- Standards : UL 508, EN/IEC 60947-5-1, CSA C22.2 No 14
- Ambient Air Temperature for Operation : -13…158 °F (-25…70 °C)
- Ambient Air Temperature for Storage : -40…158 °F (-40…70 °C)
- Vibration resistance : 15 gn 10…500 Hz)IEC 60068-2-6
- Shock resistance : 100 gn IEC 60068-2-27
- Overvoltage category : Class II IEC 61140
- Category : US10CS222466
- Discount Schedule : 0CS2
- GTIN : 3389110645705
- Returnability : Yes
- Country of origin : CZ
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 1.18 in (3.0 cm)
- Package 1 Width : 1.57 in (4.0 cm)
- Package 1 Length : 2.17 in (5.5 cm)
- Package 1 Weight : 1.48 oz (42.0 g)
- Unit Type of Package 2 : S02
- Number of Units in Package 2 : 100
- Package 2 Height : 5.91 in (15.0 cm)
- Package 2 Width : 11.81 in (30.0 cm)
- Package 2 Length : 15.75 in (40.0 cm)
- Package 2 Weight : 10.03 lb(US) (4.55 kg)
- Unit Type of Package 3 : P06
- Number of Units in Package 3 : 1600
- Package 3 Height : 30.31 in (77.0 cm)
- Package 3 Width : 31.50 in (80.0 cm)
- Package 3 Length : 23.62 in (60.0 cm)
- Package 3 Weight : 179.24 lb(US) (81.3 kg)
- Warranty : 18 months
