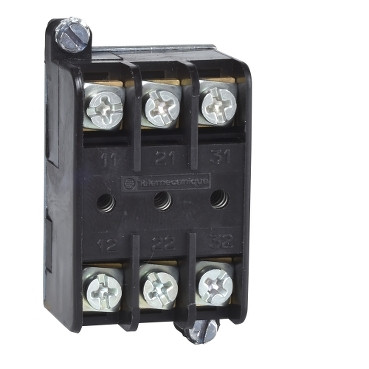

This product is part of the Harmony XAC range, an offer of pendant control stations for Ø22mm plastic signalling units. This single isolating block for control circuit. It has 3 normally closed contacts. It is an isolating block with a rated insulation voltage of 400V and a conventional enclosed thermal current of 10A. It is designed for front mounting with slow-break contact operation. It is furnished with screw clamp terminals for electrical connection. It offers mechanical durability of 1 million operating cycles. It weighs 0.05kg. It is suitable for industry and service sector, hoist and travelling cranes. It meets CSA C22.2 No 14, UL 508, EN/IEC 60947-5-1 and EN/IEC 60204-32 standards. It is compatible with the pendant control stations XACA. It is designed for mechanical handling, these highly robust pendant control stations comply with the safety requirements of IEC standards. They are not only simples and intuitive, but also very comfortable for the operator to use.
- Range of Product : Harmony XAC
- Product or Component Type : Isolating switch
- component name : XENT
- Electrical circuit type : Control circuit
- Contact block application : Emergency stop push-button
- Contact block type : Single
- Product Compatibility : XACA
- Contacts type and composition : 3 NC
- Mounting of block : Front mounting
- contact operation : Slow-break
- Mechanical durability : 1000000 cycles
- [Ithe] conventional enclosed thermal current : 10 A
- [Ui] rated insulation voltage : 400 V 3)IEC 60947-1
- [Uimp] rated impulse withstand voltage : 6 kV IEC 60947-1
- Maximum resistance across terminals : 25 MOhm
- operating force : 14 N
- Short-circuit protection : 10 A fuse protection cartridge gG
- Net Weight : 0.11 lb(US) (0.05 kg)
- Ambient Air Temperature for Operation : -13…158 °F (-25…70 °C)
- Ambient Air Temperature for Storage : -40…158 °F (-40…70 °C)
- Vibration resistance : 15 gn 10…500 Hz)IEC 60068-2-6
- Shock resistance : 100 gn IEC 60068-2-27
- Electrical shock protection class : Class II IEC 61140
- Category : US10CS222466
- Discount Schedule : 0CS2
- GTIN : 3389110426915
- Returnability : Yes
- Country of origin : FR
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 1.42 in (3.6 cm)
- Package 1 Width : 1.85 in (4.7 cm)
- Package 1 Length : 3.98 in (10.1 cm)
- Package 1 Weight : 2.36 oz (67.0 g)
- Unit Type of Package 2 : S01
- Number of Units in Package 2 : 45
- Package 2 Height : 5.91 in (15.0 cm)
- Package 2 Width : 5.91 in (15.0 cm)
- Package 2 Length : 15.75 in (40.0 cm)
- Package 2 Weight : 7.03 lb(US) (3.189 kg)
- Warranty : 18 months
