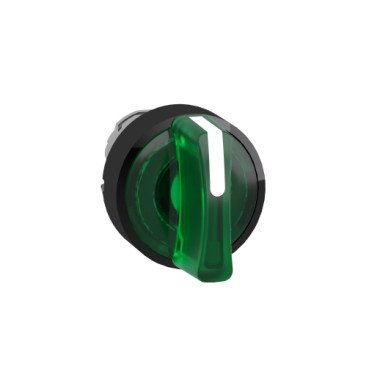

This Harmony XB4, illuminated green selector switch head for universal LED with standard handle has 3 positions, operates with spring return to center mechanism. This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Range of Product : Harmony XB4
- Product or Component Type : Head for illuminated selector switch
- Product Compatibility : Universal LED
- Device short name : ZB4
- bezel material : Black metal
- Head type : Standard
- Mounting diameter : 0.87 in (22 mm)
- Sale per indivisible quantity : 1
- Shape of signaling unit head : Round
- Type of operator : To centre spring return
- Operator profile : Green standard handle
- Operator position information : 3 positions +/- 45°
- CAD overall width : 1.14 in (29 mm)
- CAD overall height : 1.14 in (29 mm)
- CAD overall depth : 1.69 in (43 mm)
- Net Weight : 0.08 lb(US) (0.036 kg)
- Resistance to high pressure washer : 1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
- Mechanical durability : 500000 cycles
- device presentation : Basic element
- Protective treatment : TH
- Ambient Air Temperature for Storage : -40…158 °F (-40…70 °C)
- Ambient Air Temperature for Operation : -40…158 °F (-40…70 °C)
- Overvoltage category : Class I IEC 60536
- IP degree of protection : IP66 IEC 60529, IP67, IP69, IP69K
- NEMA degree of protection : NEMA 13, NEMA 4X
- IK degree of protection : IK04 conforming to IEC 50102
- Product Certifications : UL Listed, BV, DNV, LROS (Lloyds register of shipping), CSA, GL
- Vibration resistance : 5 gn 2…500 Hz)IEC 60068-2-6
- Category : US10CS222468
- Discount Schedule : 0CS2
- GTIN : 3389110841008
- Returnability : Yes
- Country of origin : FR
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 2.20 in (5.6 cm)
- Package 1 Width : 1.34 in (3.4 cm)
- Package 1 Length : 2.13 in (5.4 cm)
- Package 1 Weight : 1.41 oz (40.0 g)
- Unit Type of Package 2 : S01
- Number of Units in Package 2 : 50
- Package 2 Height : 5.91 in (15.0 cm)
- Package 2 Width : 5.91 in (15.0 cm)
- Package 2 Length : 15.75 in (40.0 cm)
- Package 2 Weight : 4.91 lb(US) (2.225 kg)
- Warranty : 18 months
