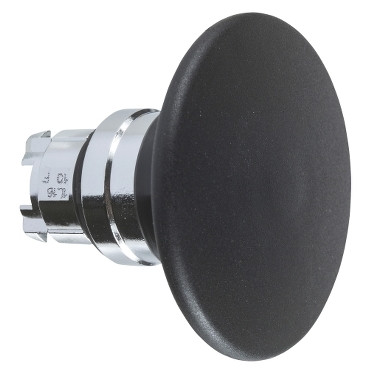

This Harmony XB4, 60mm mushroom black button head operates with a spring return / impulse mechanism. This 60mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 60mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Its highly ergonomic mushroom push button shape makes it ideal for use in area where operator wear thick gloves or where users have impaired movements.
- Range of Product : Harmony XB4
- Product or Component Type : Head for non-illuminated push-button
- Device short name : ZB4
- bezel material : Chromium plated metal
- Mounting diameter : 0.87 in (22 mm)
- Sale per indivisible quantity : 1
- Head type : Standard
- Shape of signaling unit head : Round
- Type of operator : spring return
- Operator profile : Black mushroom Ø 60 mm, unmarked
- CAD overall width : 2.36 in (60 mm)
- CAD overall height : 2.36 in (60 mm)
- CAD overall depth : 2.05 in (52 mm)
- Mechanical durability : 5000000 cycles
- device presentation : Basic element
- Protective treatment : TH
- Ambient Air Temperature for Storage : -40…158 °F (-40…70 °C)
- Ambient Air Temperature for Operation : -40…158 °F (-40…70 °C)
- Overvoltage category : Class I IEC 60536
- IP degree of protection : IP66 IEC 60529, IP67, IP69, IP69K
- NEMA degree of protection : NEMA 13, NEMA 4X
- IK degree of protection : IK03 conforming to IEC 50102
- Product Certifications : UL Listed, CSA, LROS (Lloyds register of shipping), GL, DNV, BV
- Vibration resistance : 5 gn 2…500 Hz)IEC 60068-2-6
- Category : US10CS222468
- Discount Schedule : 0CS2
- GTIN : 3389110888485
- Returnability : Yes
- Country of origin : FR
- Unit Type of Package 1 : PCE
- Number of Units in Package 1 : 1
- Package 1 Height : 2.95 in (7.5 cm)
- Package 1 Width : 2.80 in (7.1 cm)
- Package 1 Length : 3.58 in (9.1 cm)
- Package 1 Weight : 3.10 oz (88.0 g)
- Unit Type of Package 2 : S02
- Number of Units in Package 2 : 20
- Package 2 Height : 5.91 in (15.0 cm)
- Package 2 Width : 11.81 in (30.0 cm)
- Package 2 Length : 15.75 in (40.0 cm)
- Package 2 Weight : 4.65 lb(US) (2.11 kg)
- Warranty : 18 months
