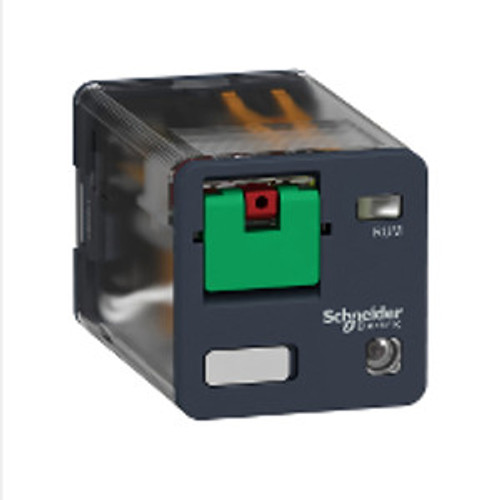

RUMC32B7

[Ie] rated operational current :

10 A at 250 V AC (NO) conforming to IEC~~

[Ie] rated operational current :

10 A at 277 V AC (same polarity) conforming to CSA

[Ie] rated operational current :

10 A at 277 V AC conforming to UL

[Ie] rated operational current :

10 A at 28 V DC (NO) conforming to IEC

[Ie] rated operational current :

10 A at 30 V DC conforming to CSA

[Ie] rated operational current :

10 A at 30 V DC conforming to UL

[Ie] rated operational current :

5 A at 250 V AC (NC) conforming to IEC

[Ie] rated operational current :

5 A at 28 V DC (NC) conforming to IEC

[Ithe] conventional enclosed thermal current :

10 A -40…131 °F (-40…55 °C)

[Uc] control circuit voltage :

24 V

[Uc] control circuit voltage :

24 V AC 50/60 Hz

[Ui] rated insulation voltage :

250 V IEC

[Ui] rated insulation voltage :

300 V CSA

[Ui] rated insulation voltage :

300 V UL

[Uimp] rated impulse withstand voltage :

4 kV 1.2/50 µs)

Ambient Air Temperature For Operation :

-40…131 °F (-40…55 °C)

average coil consumption in VA :

3 60 Hz

average resistance :

72 Ohm 20 °C +/- 15 %

Brand :

Schneider Electric

By Schneider :

Yes

Carbon footprint (kg CO2 eq, Total Life cycle) :

7

Circularity Profile :

No need of specific recycling operations

Contacts Material :

AgNi

Contacts Type And Composition :

3 C/O

control circuit type :

AC

Device Presentation :

Complete product

dielectric strength :

1500 V AC between contacts with micro disconnection

dielectric strength :

2000 V AC between poles with basic

dielectric strength :

2500 V AC between coil and contact with reinforced

drop-out voltage threshold :

>= 0.15 Uc AC

Electrical Durability :

100000 cycles resistive

Final Result for Flywheel performance tracking :

Non Flywheel

Global Keywords :

3 C/O Output Contacts

Global Keywords :

3 Pole Double Throw

Global Keywords :

3PDT

Global Keywords :

Cylindrical Pins

Global Keywords :

Harmony

Global Keywords :

LED Indicator

Global Keywords :

Lockable test button

Global Keywords :

LTB

Global Keywords :

RUM

Global Keywords :

Schneider electric

Global Keywords :

Triple

Global Keywords :

Universal Plug-In Relay

Global warming ; Total life cycle? :

7 kg CO2 eq.

IP Degree of Protection :

IP40

Line Rated Current :

10 A

load current :

10 A 250 V AC

load current :

10 A 28 V DC

Manufacturer :

Schneider Electric

maximum switching capacity :

2500 VA/280 W

maximum switching voltage :

250 V IEC

Mechanical Durability :

5000000 cycles

minimum switching capacity :

170 mW 10 mA, 17 V

Net Weight :

0.190 lb(US) (0.086 kg)

Number of Units in Package 2 :

10

Number of Units in Package 3 :

60

operating position :

Any position

Operating Time :

20 ms at nominal voltage

Override :

Lockable test button

Package 2 GTIN :

13606480626927

Package 2 Height :

1.57 in (4.000 cm)

Package 2 Length :

7.80 in (19.800 cm)

Package 2 Weight :

33.757 oz (957.000 g)

Package 2 width :

5.75 in (14.600 cm)

Package 3 GTIN :

43606480626928

Package 3 Height :

5.91 in (15.000 cm)

Package 3 Length :

15.75 in (40.000 cm)

Package 3 Weight :

13.713 lb(US) (6.220 kg)

Package 3 width :

11.81 in (30.000 cm)

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

Yes

Pollution Degree :

2

Product Certifications :

CSA

Product Certifications :

EAC

Product Certifications :

UL

Product Or Component Type :

Plug-in relay

protection category :

RT I

rated operational voltage limits :

19.2...26.4 V AC

REACh free of SVHC :

Yes

Relay Type :

Universal relay

reset time :

20 ms at nominal voltage

safety reliability data :

B10d = 100000

series name :

RUM series

shape of pin :

Cylindrical

shock resistance :

10 gn 11 ms) in operation IEC 60068-2-27

shock resistance :

10 gn 11 ms) not operating IEC 60068-2-27

Standards :

CSA C22.2 No 14

Standards :

IEC 61810-1

Standards :

UL 508

Status Led :

With

Sustainable packaging :

Yes

Take-back :

No

Temperature Shipping and Storage Range :

-40…185 °F (-40…85 °C)

test levels :

Level A group mounting

Unit Type of Package 2 :

BB1

Unit Type of Package 3 :

S02

UNSPSC Classification v19 :

39122325

UNSPSC Classification v23 :

39122325

utilisation coefficient :

20 %

vibration resistance :

3 gn +/- 1 mm 10…150 Hz)5 cycles in operation

vibration resistance :

4 gn +/- 1 mm 10…150 Hz)5 cycles not operating

Volume of Package 2 :

1156.320 cm3

Volume of Package 3 :

18000.000 cm3
