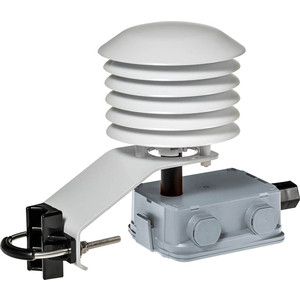

Outdoor sensor with weather and radiated heat shield Humidity / Temperature active, BACnet, 0...5 V, 0...10 V Parts included: dowels, screws, additional cable gland, 1/2" NPT conduit adapter
- Voltage AC/DC : AC/DC\xa024\xa0V
- Electrical Connection : Terminals
- Measured Values : Temperature ; Humidity
- Output Signal : BACnet ; 0...5\xa0V ; 0...10\xa0V
- Measuring Range Humidity : Adjustable via BACnet ; Default setting: 0...100% RH
- Measuring Range Temperature : Adjustable via BACnet ; -5...175°F [-20...80°C]
- Communication : BACnet MS/TP
- Output Voltage [Range] : 2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
- Output signal active note : output 0...5/10 V with jumper adjustable
