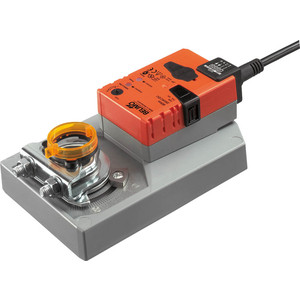

Rotary Actuator, 360 in-lb [40 Nm], AC/DC 24 V, BACnet MS/TP, Modbus RTU, MP-Bus, 2...10 V, 150 s (75...290 s), IP54
Technical Specifications:
- Voltage AC/DC: AC/DC\xa024\xa0V
- Power Consumption (Running): 3.5 W
- Power Consumption (Holding): 1.6 W
- Power Consumption For Wire Sizing: 5.5 VA
- Connection Supply Control: Cable 3\xa0ft.\xa0[1\xa0m], 6x 0.75\xa0mm²
- Torque: 360\xa0in-lb [40\xa0Nm]
- Control Type: BACnet MS/TP
- Direction Of Motion Motor: selectable with switch 0/1
- Manual Override: With push-button, can be locked
- Angle of Rotation: 95
- Running Time (Motor): 150\xa0s / 90°
- Running Time range (Motor): 75...290\xa0s
- Mechanical Interface: Universal shaft clamp 12...26.7\xa0mm
- Protection category: IP54
- Degree Of Protection NEMA: NEMA\xa02
- Enclosure Type: UL\xa0Enclosure\xa0Type\xa02
- Ambient Temperature: -22...122°F [-30...50°C]
Product Literature:
Brand: Belimo
SKU: GM24A-MOD
