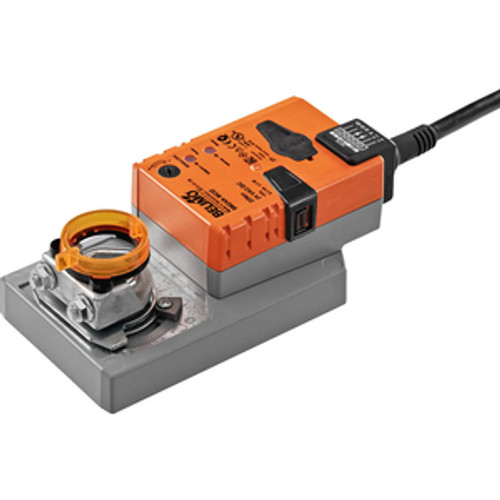

Rotary Actuator, 180 in-lb [20 Nm], AC/DC 24 V, BACnet MS/TP, Modbus RTU, MP-Bus, 2...10 V, 150 s (86...346 s), IP54
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 3.5 W
- Power Consumption (Holding) : 1.4 W
- Power Consumption For Wire Sizing : 6 VA
- Connection Supply Control : Cable 3 ft. [1 m], 6 x 0.75 mm²
- Torque : 180 in-lb [20 Nm]
- Direction Of Motion Motor : selectable with switch 0/1
- Manual Override : With push-button, can be locked
- Angle of Rotation : 95
- Running Time (Motor) : 150 s / 90°
- Running Time range (Motor) : 86...346 s
- Mechanical Interface : Universal shaft clamp reversible 10...20 mm
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
- Ambient Tempreture : -22...122°F [-30...50°C]
