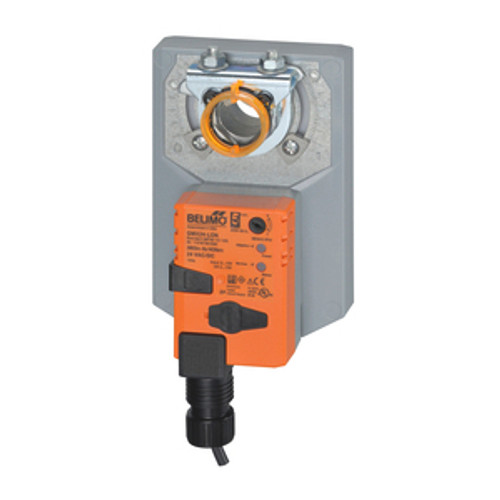

ConfigurableDamper Actuator, 360 in-lb [40 Nm], Non fail-safe, AC/DC 24 V, modulating, communicative, Hybrid, LON (FTT-10A)
Technical Specifications:
- Actuator Type: Non fail-safe
- Angle of Rotation: 95
- Control Type: LON (FTT-10A)
- Degree of Protection: IP54, NEMA 2, UL Enclosure Type 2
- Electrical Connection: cable
- Manual Override: External push button
- Power Consumption (Holding): 1.5 W
- Power Consumption (Running): 4.5 W
- Running Time (Motor): 150 s
- Safety Function: NO
- Shaft Diameter: 1/2...1.05" round, centers on 1/2" and 3/4" with insert, 1.05" without insert
- Torque: 360 in-lb [40 Nm]
- Voltage AC/DC: AC/DC 24 V
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
- Download product literature 5
- Download product literature 6
Brand: Belimo
SKU: GMX24-LON
