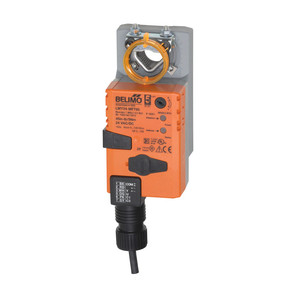

ConfigurableDamper Actuator, 45 in-lb [5 Nm], Non fail-safe, AC/DC 24 V, Modulating, Communicative, Hybrid, LON (FTT-10A)
Technical Specifications:
- Voltage AC/DC: AC/DC 24 V
- Power Consumption (Running): 2.5 W
- Power Consumption (Holding): 1.2 W
- Power Consumption For Wire Sizing: 5 VA
- Torque: 45 in-lb [5 Nm]
- Control Type: LON (FTT-10A)
- Direction Of Motion Motor: selectable with switch 0/1
- Manual Override: External push button
- Angle of Rotation: 95
- Running Time (Motor): 150 s / 90°
- Protection category: IP54
- Degree Of Protection NEMA: NEMA 2
- Enclosure Type: UL Enclosure Type 2
- Ambient Tempreture: -22...122°F [-30...50°C]
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
- Download product literature 5
Brand: Belimo
SKU: LMX24-LON
