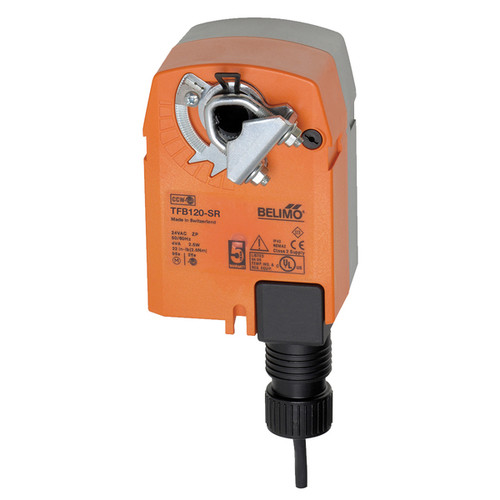

Damper Actuator, 22 in-lb [2.5 Nm], Spring return, AC 100...240 V, modulating, 2...10 V
Technical Specifications:
- Voltage AC/DC: AC\xa0100...240\xa0V
- Power Consumption (Running): 2.5 W
- Power Consumption (Holding): 2 W
- Power Consumption For Wire Sizing: 5.5 VA
- Torque: 22\xa0in-lb [2.5\xa0Nm]
- Control Type: DC\xa02...10\xa0V
- Direction Of Motion Motor: selectable with switch 0/1
- Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
- Angle of Rotation: 95
- Running Time (Motor): 95\xa0s /
- Running Time (Fail-safe): <25\xa0s
- Protection category: IP42
- Degree Of Protection NEMA: NEMA\xa02
- Enclosure Type: UL\xa0Enclosure\xa0Type\xa02
- Ambient Temperature: -22...122°F [-30...50°C]
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
- Download product literature 5
Brand: Belimo
SKU: TFB120-SR
