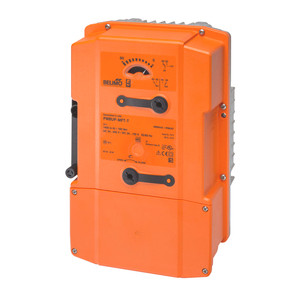

Damper Actuator, 1400 in-lb [160 Nm], Non fail-safe, AC 24...240 V / DC 24...125 V, 2...10 V, 2x SPDT, terminals
- Voltage AC/DC : AC\xa024...240\xa0V / DC\xa024...125\xa0V
- Power Consumption (Running) : 20 W
- Power Consumption (Holding) : 6 W
- Power Consumption For Wire Sizing : with 24 V 20 VA / with 240 V 52 VA
- Auxiliary Switches : 2x SPDT
- Torque : 1400\xa0in-lb [160\xa0Nm]
- Control Type : MFT/Programmable ; Communicative ; BACnet MS/TP
- Direction Of Motion Motor : reversible with app
- Manual Override : 7 mm hex crank, supplied
- Angle of Rotation : 95
- Running Time (Motor) : 35\xa0s / 90°
- Running Time range (Motor) : 30...120\xa0s
- Protection category : IP66/67
- Degree Of Protection NEMA : NEMA\xa04X
- Enclosure Type : UL\xa0Enclosure\xa0Type\xa04X
- Ambient Temperature : -22...122°F [-30...50°C]
