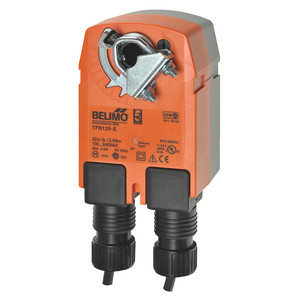

Damper Actuator, 22 in-lb [2.5 Nm], Spring return, AC 100...240 V, On/Off, 1 x SPDT
Technical Specifications:
- Voltage AC/DC: AC\xa0100...240\xa0V
- Power Consumption (Running): 2.5 W
- Power Consumption (Holding): 1.3 W
- Power Consumption For Wire Sizing: 5 VA
- Auxiliary Switches: 1x SPDT
- Torque: 22\xa0in-lb [2.5\xa0Nm]
- Control Type: On/Off
- Direction Of Motion Motor: selectable by ccw/cw mounting
- Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
- Angle of Rotation: 95
- Running Time (Motor): 75\xa0s
- Running Time (Fail-safe): <25\xa0s
- Protection category: IP42
- Degree Of Protection NEMA: NEMA\xa02
- Enclosure Type: UL\xa0Enclosure\xa0Type\xa02
- Ambient Temperature: -22...122°F [-30...50°C]
Product Literature:
- Download product literature 1
- Download product literature 2
- Download product literature 3
- Download product literature 4
- Download product literature 5
Brand: Belimo
SKU: TFB120-S
