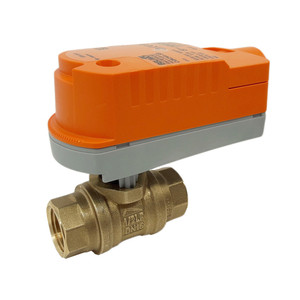

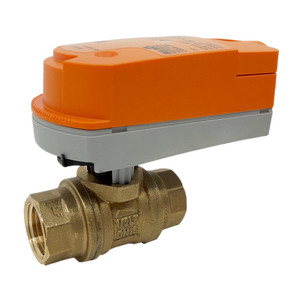

Potable water valve, 2-way, DN 15, Internal thread, ps, Fluid temperature -4.0...212°F [-20...100°C]Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating pointActuator fitted
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 0.3 W
- Power Consumption (Holding) : 0.2 W
- Power Consumption For Wire Sizing : 0.6 VA
- Control Type : Floating/3-point
- Protection category : IP40
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
- Pattern : 2-way
- Cv : 32
- Potable water certificate : NSF/ANSI 61 ; NSF/ANSI 372
- Fluid : Potable water
- Flow temperature : -4.0...212°F [-20...100°C]
- Body Pressure Rating : 600 psi CWP
- Differential pressure Δpmax : 200 psi
- End Fitting : Internal thread
- Valve Size : 0.5" [15]
