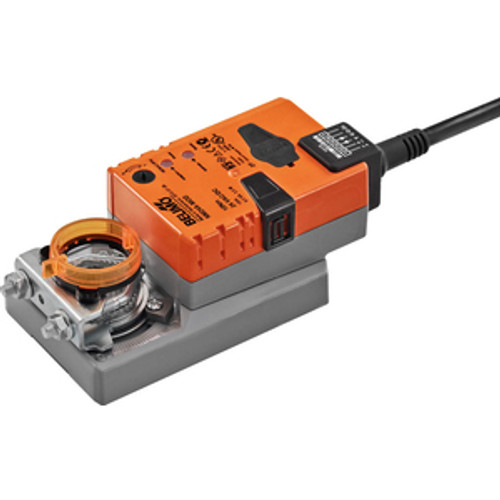

Belimo product NR24A-MOD technical information.
Technical Specifications:
- Voltage AC/DC: AC/DC\xa024\xa0V
- Power Consumption (Running): 3.5 W
- Power Consumption (Holding): 1.2 W
- Power Consumption For Wire Sizing: 6 VA
- Connection Supply Control: Cable 3\xa0ft.\xa0[1\xa0m], 6x 0.75\xa0mm²
- Torque: 90\xa0in-lb [10\xa0Nm]
- Control Type: BACnet MS/TP
- Manual Override: With push-button, can be locked
- Running Time (Motor): 90\xa0s / 90°
- Running Time range (Motor): 45...170\xa0s
- Protection category: IP54
- Degree Of Protection NEMA: NEMA\xa02
- Enclosure Type: UL\xa0Enclosure\xa0Type\xa02
- Ambient Temperature: -22...122°F [-30...50°C]
Product Literature:
Brand: Belimo
SKU: NR24A-MOD
