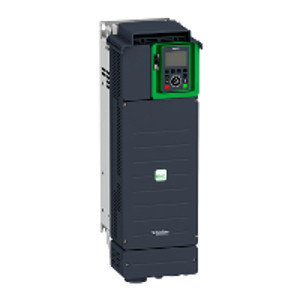

ATV630D15M3

Brand :

Schneider Electric

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

capacity of DC link :

4080.0 µF

Carbon footprint (kg CO2 eq, Total Life cycle) :

21932

Communication Port Protocol :

Ethernet

Communication Port Protocol :

Modbus serial

Communication Port Protocol :

Modbus TCP

computer port :

Yes

Connector Type :

RJ45 on the remote graphic terminal)Ethernet/Modbus TCP

Connector Type :

RJ45 on the remote graphic terminal)Modbus serial

continuous output current :

46.8 A 4 kHz heavy duty

continuous output current :

63.4 A 4 kHz normal duty

data format :

8 bits, configurable odd, even or no parity

degree of protection :

UL type 1 UL 508C

Depth :

10.7 in (271 mm)

design of frequency changer :

U converter

Device Short Name :

ATV630

discrete and process manufacturing :

Building - HVAC Compressor centrifugal

discrete and process manufacturing :

Building - HVAC Screw compressor

discrete and process manufacturing :

Food and beverage processing Atomization

discrete and process manufacturing :

Food and beverage processing Fan

discrete and process manufacturing :

Food and beverage processing Other application

discrete and process manufacturing :

Food and beverage processing Pump

discrete and process manufacturing :

Mining mineral and metal Fan

discrete and process manufacturing :

Mining mineral and metal Pump

discrete and process manufacturing :

Oil and gas Compressor for refinery

discrete and process manufacturing :

Oil and gas Electro submersible pump (ESP)

discrete and process manufacturing :

Oil and gas Fan

discrete and process manufacturing :

Oil and gas Jet fuel pump

discrete and process manufacturing :

Oil and gas Water injection pump

discrete and process manufacturing :

Water and waste water Centrifuge pump

maximum acceleration under shock load (during tran :

150 m/s² at 11 ms

maximum acceleration under vibrational stress (dur :

10 m/s² at 13...200 Hz

maximum acceleration under vibratory load (during :

10 m/s² at 13...200 Hz

maximum associated fuse rating :

100.0 A

maximum deflection under vibratory load (during op :

1.5 mm at 2...13 Hz

maximum deflection under vibratory load (during st :

1.5 mm at 2...13 Hz

maximum deflection under vibratory load (during tr :

1.5 mm at 2...13 Hz

Maximum Horse Power Rating :

15 hp heavy duty

Maximum Horse Power Rating :

20 hp normal duty

Maximum Input Current per phase :

52.6 A

maximum output frequency :

500 kHz

maximum output voltage :

240.0 V

Maximum Switching Current :

Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC

Maximum Switching Current :

Relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC

Maximum Switching Current :

Relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC

Maximum Switching Current :

Relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC

maximum transient current :

69.7 A 60 s normal duty)

maximum transient current :

70.2 A 60 s heavy duty)

method of access :

Slave Modbus TCP

minimum switching current :

Relay output R1, R2, R3 5 mA 24 V DC

motor power kW :

11 kW heavy duty)

motor power kW :

15 kW normal duty)

motor slip compensation :

Adjustable

motor slip compensation :

Automatic whatever the load

motor slip compensation :

Can be suppressed

motor slip compensation :

Not available in permanent magnet motor law

motor starter type :

Variable speed drive

Mounting Mode :

Wall mount

NEMA Protection Rating :

NEMA 1

Net Weight :

30.0 lb(US) (13.6 kg)

Network Frequency :

50-60 Hz

noise level :

63.5 dB

noise level :

63.5 dB 86/188/EEC

nominal output current :

63.4 A

Nominal Output Power :

15.0 kW

nominal switching frequency :

4 kHz

number of addresses :

1-247 Modbus serial

number of HW interfaces industrial Ethernet :

1

number of HW interfaces other :

0

number of HW interfaces parallel :

0

number of HW interfaces PROFINET :

0

number of HW interfaces serial RS232 :

0

number of HW interfaces serial RS422 :

0

number of HW interfaces serial RS485 :

1

number of HW interfaces serial TTY :

0

number of HW interfaces USB :

0

number of input phases :

3

number of inputs, bidirectional, not potential-fre :

0

number of inputs, potential-free :

0

number of output phases :

3

Operating Altitude :

1000...4800 m with current derating 1 % per 100 m

operating element present :

Yes

operating position :

Vertical +/- 10 degree

optical interface present :

No

option card :

communication module, Ethernet Powerlink

option card :

Communication module, BACnet MS/TP

option card :

Slot A communication module, CANopen daisy chain RJ45

option card :

Slot A communication module, CANopen screw terminals

option card :

Slot A communication module, CANopen SUB-D 9

option card :

Slot A communication module, DeviceNet

option card :

Slot A communication module, Ethernet IP/Modbus TCP/MD-Link

option card :

Slot A communication module, Modbus TCP/EtherNet/IP

option card :

Slot A communication module, Profibus DP V1

option card :

Slot A communication module, Profinet

option card :

Slot A/slot B digital and analog I/O extension module

option card :

Slot A/slot B output relay extension module

Overvoltage Category :

III

Packaging made with recycled cardboard :

Yes

Packaging without single use plastic :

No

permissible temporary current boost :

1.1 x In 60 s normal duty)

permissible temporary current boost :

1.5 x In 60 s heavy duty)

permitted relative humidity (during operation) :

Class 3K5 according to EN 60721-3

permitted relative humidity (during storage) :

Class 1K5 according to EN 60721-3

permitted relative humidity (during transport) :

Class 2K5 according to EN 60721-3

Phase :

3 phase

Physical Interface :

2-wire RS 485

Physical Interface :

Ethernet

Pollution Degree :

2

Pollution Degree :

2 IEC 61800-5-1

power dissipation in W :

Forced convection 486 W 200 V 4 kHz

power dissipation in W :

Natural convection 87 W 200 V 4 kHz

power loss per device current dependent :

701.0 W

power loss static current independent :

28.0 W

power range :

15-25 kW 200-240 V 3 phase

Product Certifications :

ATEX INERIS

Product Certifications :

ATEX zone 2/22

Product Certifications :

CSA

Product Certifications :

DNV-GL

Product Certifications :

TÃœV

Product Certifications :

UL

Product contributes to saved and avoided emissions :

Yes

Product Destination :

Asynchronous motors

Product Destination :

Synchronous motors

Product Or Component Type :

Variable speed drive

Product Specific Application :

Process and utilities

prospective line Isc :

50 kA

Protection Type :

Break on the control circuit drive

Protection Type :

Line supply overvoltage drive

Protection Type :

Line supply phase loss drive

Protection Type :

Line supply undervoltage drive

Protection Type :

Motor phase break drive

Protection Type :

Motor phase break motor

Protection Type :

Overcurrent between output phases and earth drive

Protection Type :

Overheating drive

Protection Type :

Overload of output voltage drive

Protection Type :

Overspeed drive

Protection Type :

Overvoltages on the DC bus drive

Protection Type :

Safe torque off drive

Protection Type :

Safe torque off motor

Protection Type :

Short-circuit protection drive

Protection Type :

Thermal protection drive

Protection Type :

Thermal protection motor

Quantity Per Set :

1

refresh time :

Relay output R1, R2, R3)5 ms +/- 0.5 ms)

Regulation Loop :

Adjustable PID regulator

Relative Humidity :

5-95 % without condensation IEC 60068-2-3

relative symmetric mains voltage tolerance :

10 %

relative symmetric network frequency tolerance :

5 %

relay output number :

3

relay output type :

Configurable relay logic R1 fault relay NO/NC 100000 cycles

relay output type :

Configurable relay logic R2 sequence relay NO 100000 cycles

relay output type :

Configurable relay logic R3 sequence relay NO 100000 cycles

Safety Function :

STO (safe torque off) SIL 3

sampling duration :

10 ms +/- 1 ms AO1) - analog output

supporting protocol for other bus systems :

No

supporting protocol for PROFIBUS :

Yes

supporting protocol for PROFINET CBA :

Yes

supporting protocol for PROFINET IO :

Yes

supporting protocol for PROFIsafe :

No

supporting protocol for SafetyBUS P :

No

supporting protocol for SERCOS :

No

supporting protocol for SUCONET :

No

supporting protocol for TCP/IP :

Yes

Switching Frequency :

2...12 kHz adjustable

Switching Frequency :

4...12 kHz with derating factor

synchronous motor control profile :

Permanent magnet motor

synchronous motor control profile :

Synchronous reluctance motor

Take-back :

No

Temperature Ambient Operating Range :

5-140 °F (-15-60 °C)

Temperature Shipping and Storage Range :

-40-158 °F (-40-70 °C)

transmission frame :

RTU

Transmission Rate :

10, 100 Mbits

Transmission Rate :

4800 bps, 9600 bps, 19200 bps, 38.4 Kbps

type of cooling :

Forced convection

type of polarization :

No impedance

UNSPSC Classification v19 :

39122001

UNSPSC Classification v23 :

39122001

variant :

Standard version

vibration resistance :

1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6

vibration resistance :

1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-6

volume of cooling air :

63402.4 Gal/hr(US) (240 m3/h)

Width :

8.9 in (226 mm)

with safety function Safe brake management (SBC/SB :

No

with safety function Safe Direction (SDI) :

No

with safety function Safe Operating Stop (SOS) :

No

with safety function Safe Position (SP) :

No

with safety function Safe programmable logic :

No

with safety function Safe Speed Monitor (SSM) :

No

with safety function Safe Stop 1 (SS1) :

No

with safety function Safe torque off (STO) :

Yes

with safety function Safely Limited Position (SLP) :

No

with safety function Safely Limited Speed (SLS) :

No

with sft fct Safe Stop 2 (SS2) :

No

PDF :

https://iportal2.schneider-electric.com/Contents/docs/SQD-630%20CATALOG.PDF
