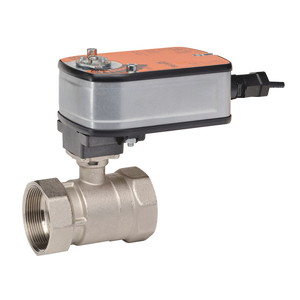

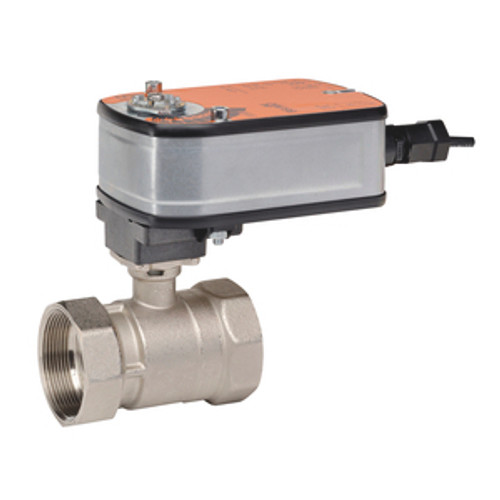

Characterized Control Valve (CCV), 3/4", 2-way, Cv 4.7 Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, 1x SPDT, ModulatingActuator fitted
- Pattern : 2-way
- Cv : 4.7
- Body Pressure Rating : 600 psi
- Flow characteristic {Tools} : Equal percentage
- End Fitting : Internal thread
- Trim : Chrome plated brass
- Valve Size : 0.75" [20]
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 2.5 W
- Power Consumption (Holding) : 1 W
- Power Consumption For Wire Sizing : 5 VA
- Auxiliary Switches : 1x SPDT
- Control Type : DC 2...10 V
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
