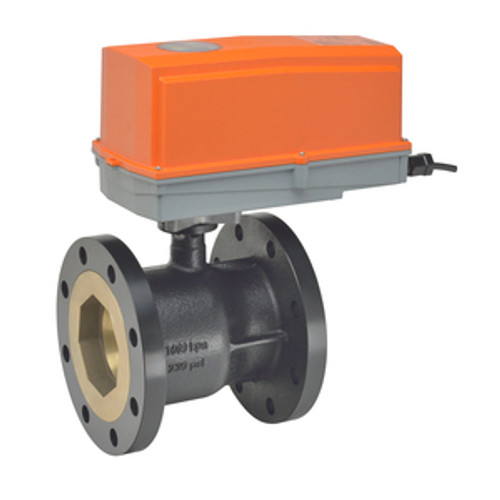

Characterized Control Valve (CCV), 6", 2-way, ANSI Class 125, Cv 400 Valve Actuator, Electrical fail-safe, AC 24 V, On/Off, Floating point, NEMA 4XActuator fitted
- ANSI Class : 125
- Pattern : 2-way
- Cv : 400
- Body Pressure Rating : ANSI Class 125, standard class B
- Flow characteristic {Tools} : Equal percentage
- End Fitting : Flange
- Trim : Stainless steel
- Valve Size : 6" [150]
- Voltage AC/DC : AC 24 V
- Power Consumption (Running) : 12 W
- Power Consumption (Holding) : 3 W
- Power Consumption For Wire Sizing : 21 VA
- Control Type : Floating/3-point
- Protection category : IP66/67
- Degree Of Protection NEMA : NEMA 4X
- Enclosure Type : UL Enclosure Type 4X
