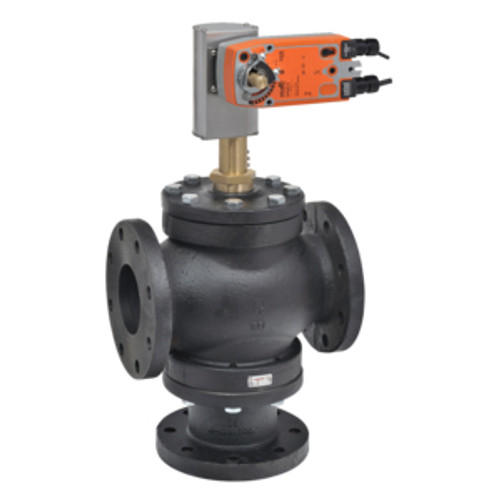

Globe Valve (GV), 4", 3-way, ANSI Class 125, Cv 154 ConfigurableValve Actuator, Spring return, AC/DC 24 V, 2...10 V, 2x SPDT, MFT/programmableActuator fitted
- ANSI Class : 125
- Pattern : 3-way
- Cv : 154
- Body Pressure Rating : ANSI Class 125, up to 175 psi below 150°F
- Flow characteristic {Tools} : Linear
- End Fitting : Flange
- Trim : Stainless steel
- Valve Size : 4" [100]
- Voltage AC/DC : AC/DC 24 V
- Power Consumption (Running) : 7.5 W
- Power Consumption (Holding) : 3 W
- Power Consumption For Wire Sizing : 10 VA
- Auxiliary Switches : 2x SPDT
- Control Type : MFT/Programmable
- Protection category : IP54
- Degree Of Protection NEMA : NEMA 2
- Enclosure Type : UL Enclosure Type 2
