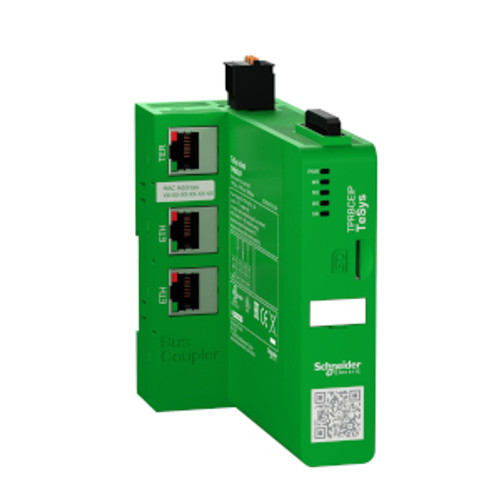

Bus coupler, TeSys island, 24VDC, Ethernet switch (EtherNet IP / Modbus TCP)
- [Us] rated supply voltage : 24 V DC
- Ambient Air Temperature For Operation : 14…140 °F (-10…60 °C)
- Ambient Air Temperature For Storage : -13…158 °F (-25…70 °C)
- Brand : Schneider Electric
- By Schneider : Yes
- California proposition 65 : WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Communication Port Protocol : EtherNet/IP
- Communication Port Protocol : Modbus TCP
- Communication Service : Auto MDI/MDX function
- Communication Service : BOOTP client
- Communication Service : DHCP client
- Communication Service : Ethernet/IP adapter
- Communication Service : Modbus TCP server
- Communication Service : SNMP client
- Communication Service : SNTP client
- Connections - Terminals : Power supply removable spring terminal block 2 0.004 in² (2.5 mm²) AWG 14)rigid or flexible
- cybersecurity : Achilles certified
- Depth : 4.5 in (114 mm)
- Device Presentation : Management of the complete island up to 20 modules
- Device Presentation : Point of connection between a group of starters and an automation controller
- Device Short Name : TPRBC
- Electromagnetic Compatibility : Communication: fast transients immunity test, level 3, 1 kV, conforming to EN/IEC 61000-4-4
- Electromagnetic Compatibility : Communication: surge immunity test (common mode), level 3, 1 kV, conforming to EN/IEC 61000-4-5
- Electromagnetic Compatibility : Electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2
- Electromagnetic Compatibility : Power supply: fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4
- Electromagnetic Compatibility : Power supply: surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5
- Electromagnetic Compatibility : Radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3
- exchange mode : Half duplex, full duplex, autonegotiation Ethernet
- Final Result for Connectable : Connectable with upgrade
- Final Result for Flywheel performance tracking : Connectable products
- fire resistance : 1760 °F (960 °C) UL 94
- Function Available : Full integration with SoMove/MachineExpert for the programming of the island
- Function Available : One service port with an embedded webserver for maintenance
- Function Available : One single 24V DC power supply for the complete island
- Function Available : Two fieldbus ports for communication with an automation controller
- Global Keywords : Avatar
- Global Keywords : Connected
- Global Keywords : Digital twin
- Global Keywords : EtherNet/IP
- Global Keywords : Fieldbus
- Global Keywords : IIoT
- Global Keywords : Industry 4.0
- Global Keywords : Intelligent head
- Global Keywords : Modbus TCP
- Global Keywords : TeSys island
- Global Keywords : TPRBC
- Halogen content performance : Halogen free plastic parts product
- Height : 4.6 in (118 mm)
- Init explanation : New offer, ALADIN project (PMP) , S&C LoB
- Integrated Connection Type : 1 micro SD card port
- Integrated Connection Type : 1 RJ45 female Ethernet TCP/IP, service port
- Integrated Connection Type : 2 RJ45 female Ethernet IP/Modbus TCP 10/100BASE-T, fieldbus port
- IP Degree of Protection : IP20
- Local Signalling : 1 LED green/red BS internal bus status
- Local Signalling : 1 LED green/red MS module status
- Local Signalling : 1 LED green/red NS network status
- Local Signalling : 1 LED green/red SD SD card access (SD)
- Local Signalling : 1 LED green/yellow PWR power supply status
- Manufacturer : Square D
- Mounting Mode : Horizontal and vertical 35 mm symmetrical rail)
- Net Weight : 0.450 lb(US) (0.204 kg)
- Number of Units in Package 2 : 16
- Operating Altitude : 0...6561.68 ft (0...2000 m) without derating
- Package 2 GTIN : 43606489832702
- Package 2 Height : 11.81 in (30.000 cm)
- Package 2 Length : 15.75 in (40.000 cm)
- Package 2 Weight : 11.530 lb(US) (5.230 kg)
- Package 2 width : 11.81 in (30.000 cm)
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : No
- Pollution Degree : 2
- power dissipation in W : 7 W maximum
- Product Certifications : Achilles level 2
- Product Certifications : CSA
- Product Certifications : EAC
- Product Certifications : UL
- Product Compatibility : TPRAN analog IO module
- Product Compatibility : TPRDG digital IO module
- Product Compatibility : TPRPM power module
- Product Compatibility : TPRSM SIL interface module
- Product Compatibility : TPRSS SIL motor starter
- Product Compatibility : TPRST motor starter
- Product Compatibility : TPRVM voltage interface module
- Product Name : TeSys island
- Product Or Component Type : Bus coupler
- Protection Type : External fuse, 3 A fast power supply
- Protection Type : Reverse polarity protection power supply
- Protective Treatment : TC
- Range : TeSys
- Rated current : 3 A maximum
- Relative Humidity : 5…95 %
- SCIP Number : 737c99ce-bdba-4209-8b07-d1c5bfde8889
- shock resistance : 15 gn 11 ms) IEC 60068-2-27
- Standards : CSA C22.2 No 61010-2-201
- Standards : EN/IEC 60947-4-1
- Standards : EN/IEC 61010-2-201
- Standards : UL 61010-2-201
- supply voltage limits : 20.4…28.8 V DC
- Take-back : No
- Unit Type of Package 2 : S03
- UNSPSC Classification v19 : 39121521
- UNSPSC Classification v23 : 39121521
- vibration resistance : 1 gn 13…200 Hz) IEC 60068-2-6
- vibration resistance : 1.5 mm peak to peak 3…13 Hz) IEC 60068-2-6
- Volume of Package 2 : 36000.000 cm3
- Warranty : 18 months
- Width : 2.0 in (50 mm)
