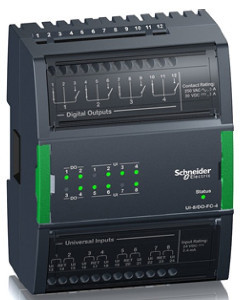

Central I/O module, SpaceLogic, 8 universal inputs, 4 digital Form C outputs [TAA]

Analogue Input Type :

Configurable voltage, current or probe 0...10 V input voltage

Analogue Input Type :

Configurable voltage, current or probe 0...20 mA

Analogue Input Type :

Configurable voltage, current or probe 1 kOhm connection of probes

Analogue Input Type :

Configurable voltage, current or probe 1.8 kOhm connection of probes

Analogue Input Type :

Configurable voltage, current or probe 10 kOhm connection of probes

Analogue Input Type :

Configurable voltage, current or probe 10 kOhm with shunt

Analogue Input Type :

Configurable voltage, current or probe 2.2 kOhm connection of probes

Analogue Input Type :

Configurable voltage, current or probe 20 kOhm connection of probes

Brand :

Schneider Electric

By Schneider :

Yes

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Carbon footprint (kg CO2 eq, Total Life cycle) :

76

Depth :

2.5 in (64 mm)

Device Short Name :

UI-8/DO-FC-4

Discrete Input Number :

8

Discrete Input Voltage :

24 V

Discrete Output Number :

4

Discrete Output Type :

Relay

Electrical Connection :

plug-in sub-base

End of commercialization annoucement date :

04/25/2023

End of commercialization date :

05/31/2025

Final Result for Connectable :

Connectable ready

Final Result for Flywheel performance tracking :

Edge control

Flame Retardance :

UL94V0-5VB

Global Keywords :

12 Channel I/O module

Global Keywords :

AS-P I/O module

Global Keywords :

Central I/O module

Global Keywords :

Digital output I/O module

Global Keywords :

Form C digital output I/O module

Global Keywords :

I/O module

Global Keywords :

Plant room controller

Global Keywords :

Smoke control

Global Keywords :

UL 864

Global Keywords :

Universal input I/O module

Global warming ; Total life cycle? :

76 kg CO2 eq.

Halogen content performance :

Halogen free plastic parts and cables product

Height :

4.5 in (114 mm)

Indivisible Sale Qty :

1

Input/Output Type :

universal input

IP Degree of Protection :

IP20

Local Signalling :

LED green/red) high signal level

Local Signalling :

LED green/red) low signal level

Manufacturer :

Schneider Electric

Material :

ABS + PC

Maximum Power Consumption In Va :

1.9 W

Mounting Support :

DIN rail

Mounting Support :

Wall

Net Weight :

6.4 oz (181 g)

Override :

Without

Packaging made with recycled cardboard :

No

Packaging without single use plastic :

No

Product Certifications :

CE

Product Certifications :

FCC part 15 class B

Product Certifications :

ICES-003

Product Certifications :

RCM

Product Compatibility :

Balco

Product Compatibility :

Continuum

Product Compatibility :

Honeywell

Product Compatibility :

I/NET

Product Compatibility :

Johnson Control

Product Compatibility :

Satchwell

Product Compatibility :

Xenta

Product Name :

I/O Modules

Product Or Component Type :

I/O module

PVC free :

Yes

Range :

EcoStruxure Building Operation

Range Compatibility :

EcoStruxure Building Operation TB-IO-W1 terminal base

Relative Humidity :

0…95 % non-condensing

SCIP Number :

08bd611f-8419-43db-ad4e-34d847346717

Standards :

FCC CFR 47 part 15

Standards :

UL 864

Standards :

UL 916

Switching Frequency :

25 Hz

Take-back :

No

Temperature Ambient Operating Range :

32…122 °F (0…50 °C)

Temperature Shipping and Storage Range :

-4…158 °F (-20…70 °C)

Width :

1.2 in (30 mm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/CE-DOC-000009-05.PDF||~~PDF
