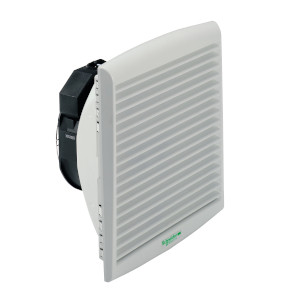

ClimaSys forced vent | Rated supply voltage : 75...126 V | Input voltage : 115 V 50/60 Hz | Absorbed power : 36 W 50 Hz, 36 W 60 Hz | Rated current : 0.35 A 50 Hz, 0.32 A 60 Hz | IP degree of protection : IP54
- [Us] rated supply voltage : 75...126 V~~
- bearing type : Ball
- Brand : Schneider Electric
- By Schneider : Yes
- Channel status : Distribution
- Color : Outlet grille Gray RAL 7035)
- condition of use : Filter must be cleaned and replaced regularly
- condition of use : Flow rates depends on the work point, see ProClima software
- condition of use : Outside temperature must be 5 °C lower than inside temperature
- condition of use : Overfrequent filter replacement should be avoided
- condition of use : Surrounding environment must be relatively clean
- Configurators/Selectors : NetShelter
- Connections - Terminals : Faston connector
- cut-out dimensions : 223 x 223 mm
- Depth : External : 4.6 in (116 mm)
- Device Composition : 1 axial motor
- Device Composition : 1 cut-out template
- Device Composition : 1 filter front of axial motor
- Device Composition : 1 outlet grille front
- Device Composition : 1 power cord
- Device Composition : 2 protective grille on the front and rear surfaces
- Final Result for Flywheel performance tracking : Non Flywheel
- Form name : Precision Air Conditioning
- Global Keywords : ClimaSys
- Global Keywords : NSYCVF300M115PF
- Global Keywords : Cabinet
- Global Keywords : ClimaSys CV
- Global Keywords : Enclosure Accessory
- Global Keywords : Fan
- Global Keywords : Filter
- Global Keywords : Thermal management
- Global Keywords : Ventilation
- Height : External: 10.6 in (268 mm)
- Input Voltage : 115 V 50/60 Hz
- IP Degree of Protection : IP54
- Lead time : Usually Ships within 4 Weeks
- Line Rated Current : 0.32 A 60 Hz
- Line Rated Current : 0.35 A 50 Hz
- Manufacturer : Schneider Electric
- Maximum Pressure : 158 Pa flow rate 0 m³/h
- Net Weight : 2.9 lb(US) (1.3 kg)
- noise level : 60…68 dB
- Number of Units in Package 2 : 64
- OEM : APC
- Package 2 Height : 47.24 in (120.000 cm)
- Package 2 Length : 47.24 in (120.000 cm)
- Package 2 Weight : 277.783 lb(US) (126.000 kg)
- Package 2 width : 31.50 in (80.000 cm)
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- power range : 36 W 50 Hz
- power range : 36 W 60 Hz
- Prod Type : SP
- Product Certifications : CSA
- Product Name : ClimaSys CV
- Product Or Component Type : Fan
- Range : ClimaSys
- SCIP Number : 61d9d3f3-5a49-48f8-8056-1a5ad0ad4c76
- Take-back : No
- Temperature Ambient Operating Range : 14…158 °F (-10…70 °C)
- Temperature Shipping and Storage Range : -40…158 °F (-40…70 °C)
- type of ventilation filter : Standard
- Unit Type of Package 2 : P12
- UNSPSC Classification v19 : 39121321
- UNSPSC Classification v23 : 39121321
- Volume of Package 2 : 1152000.000 cm3
- Warranty : 18 months
- Width : External: 9.8 in (248 mm)
