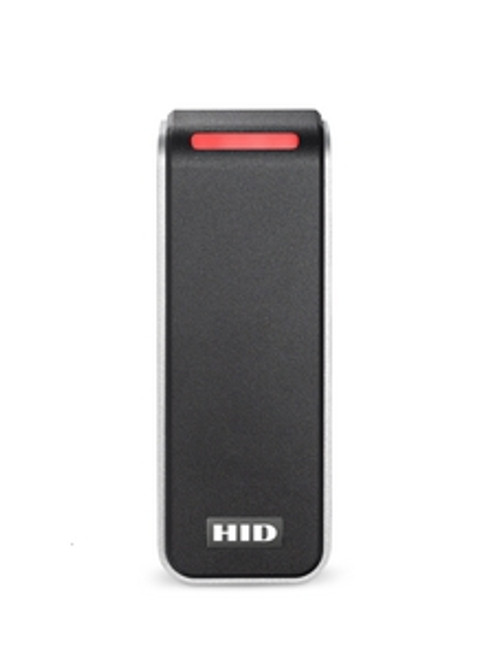

HID Mullion Reader, Pigtail, OSDP, Wiegand, CSI Indala 32 Bit, Mobile Ready

[Us] rated supply voltage :

12 V DC

Application :

Access control

Brand :

HID

Color :

Black and silver

Communication Port Protocol :

Bluetooth

Communication Port Protocol :

OSDP

Communication Port Protocol :

Wiegand

Current Consumption :

250 mA

Depth :

0.8 in (19.5 mm)

Device Short Name :

Signo 20

Electrical Connection :

Pigtail connector

Final Result for Connectable :

Not connectable

Final Result for Flywheel performance tracking :

Non Flywheel

Height :

4.8 in (121.5 mm)

IP Protection Rating :

IP65

Line Rated Current :

80 mA

Maximum Cable Distance Between Devices :

498.7 ft (152 m)

Model :

Signo 20

Mounting Mode :

Wall-mounted

Net Weight :

3.4 oz (95 g)

Packaging made with recycled cardboard :

No

Packaging without single use plastic :

No

Product Alert :

Please note that any reader orders that include cards, submitted with missing or incorrect configuration text are subject to cancelation by Schneider Electric or HID.

Product Certifications :

UL

Product Or Component Type :

Reader

Reading Distance :

1.6-4" (6-10 cm) for

Relative Humidity :

0…95 % RH, non-condensing

RFID Frequency :

125 kHz

RFID Frequency :

13.56 MHz

RFID Frequency :

2.4 GHz

Standards :

UL 294

Status Led :

Tricolor LED

Take-back :

No

Technology Type :

Bluetooth

Technology Type :

CSI Indala

Technology Type :

HID Prox

Technology Type :

ICLASS Seos

Temperature Ambient Operating Range :

-31…151 °F (-35…66 °C)

Temperature Shipping and Storage Range :

-40…185 °F (-40…85 °C)

Width :

4.7 in (119.5 mm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/HID%C2%AE%20SIGNO%E2%84%A2%20READERS%20DATASHEET.PDF
