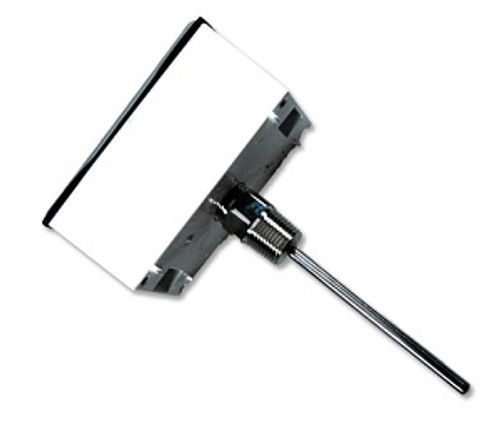

These immersion probe type temperature sensors are both highly accurate and cost effective. Installation could not be easier. The sensor is encased in a corrosion-resistant stainless steel probe for durability, with 1/2" NPT threads standard. APPLICATIONS |Tanks |Pipes |Chillers |Corrosion resistant stainless steel probe design
- Application : Immersion Application~~
- Application : Pipe
- Brand : Veris Industries
- By Schneider : Yes
- Depth : 2.008 in (51 mm)
- Diameter : Probe 0.2 in (6 mm)
- End of commercialization annoucement date : 05/15/2025
- End of commercialization date : 08/15/2025
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Height : 4.6 in (117 mm)
- Humidity Calibration Certificate : Temperature: none
- Location : Plant Room
- Manufacturer : Schneider Electric
- Material : Aluminium: enclosure
- Material : Stainless steel: Cover
- Measurement Accuracy : +/- 0.3 °C
- Measurement Range : 0...50 °C
- Mounting Mode : Pipe with Water Resistant Housing
- Output Type : Resistive Output
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Product Or Component Type : Sensor
- Sensor Model : TIWA1C0
- Sensor Type : 1 kOhm platinum RTD Temperature
- Take-back : No
- Type Of Measurement : Temperature
- Width : 2.9 in (74 mm)
