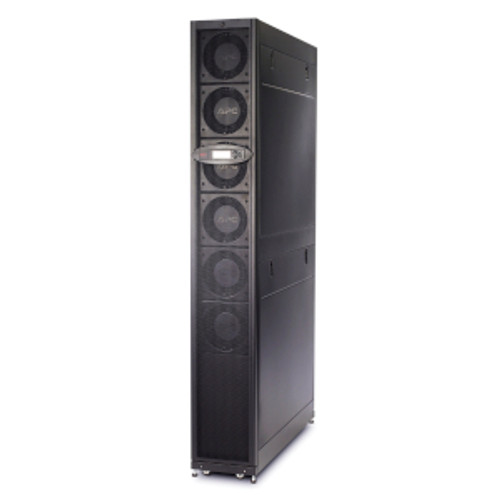

ACRD200

Air Discharge Patterns :

Horizontal

air flow :

2290 ft³/min (1080.8 l/s)

Brand :

APC Brand

California proposition 65 :

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Channel status :

Contact Sales

Color :

Black

Compressor Type :

Scroll

Condensate Pump Capacity :

2.6 Gal/hr(US) (0.010 m3/h)

Configurators/Selectors :

Large data centers

Configurators/Selectors :

Medium data centers

Configurators/Selectors :

Small data centers

Control panel :

Multi-function LCD status and control console

curve equation :

Loss

curve load maximum :

100 %

curve X-axis maximum :

100 %

curve X-axis minimum :

0 %

curve X-axis title :

Load

curve X-axis units :

Percentage

curve Y-axis maximum :

100 %

curve Y-axis minimum :

50 %

curve Y-axis title :

Efficiency

curve Y-axis units :

Percentage

Depth :

42.13 in (107 cm)

Final Result for Connectable :

Not connectable

Final Result for Flywheel performance tracking :

Non Flywheel

Form name :

Precision Air Conditioning

Global Keywords :

InRow RD, 300mm, Fluid Cooled, 208-230V, 60Hz

Height :

78.39 in (199.1 cm)

Input Frequency :

60 Hz

Input Power :

4600 W

Intake Air :

Rear Return

Lead time :

Special Order - Call for Quoted Lead Times

Life cycle Comment :

[Oracle Admin: Product Line & Family Change made]

Main Input Voltage :

208 V

Main Input Voltage :

230 V

Manufacturer :

American Power Conversion Corp. (APC)

Mounting Mode :

Not rack-mountable

Mounting Preference :

No preference

Net Weight :

438.92 lb(US) (199.09 kg)

number of rack unit :

42U

Number of Units in Package 3 :

1

OEM :

APC

Packaging made with recycled cardboard :

No

Packaging without single use plastic :

No

Product Certifications :

CE

Product Certifications :

C-tick

Product Certifications :

CUL Listed

Product Certifications :

UL Listed

Provided Equipment :

Installation guide

Provided Equipment :

Operations and maintenance manual

Refrigerant Charge :

5 lb(US) (2.3 kg)

Return pipe diameter :

4.84 in (122.94 mm)

Supply pipe diameter :

123 in (3124.2 mm)

Take-back :

No

type of cooling :

Glycol,Coolant: Glycol,Entering coolant temp: 105 °F (40.56 °C),Entering air temp: 29 °C (85 °F),Entering air relative humidity: 33 %,Coolant flow rate: 10 gal(US)/min (0.6 l/s),Cooling capacity: 9.12 kW

type of cooling :

Water Cooled,Coolant: Water,Entering coolant temp: 85 °F (29.44 °C),Entering air temp: 29 °C (85 °F),Entering air relative humidity: 33 %,Coolant flow rate: 10 gal(US)/min (0.6 l/s),Cooling capacity: 10.92 kW

Warranty :

1 year (parts only), 1 year on-site repair or replace with factory authorized Start-Up

Width :

11.81 in (30 cm)

PDF :

https://iportal2.schneider-electric.com/Contents/docs/ACRD200_DATA%20SHEET.PDF||~~PDF
