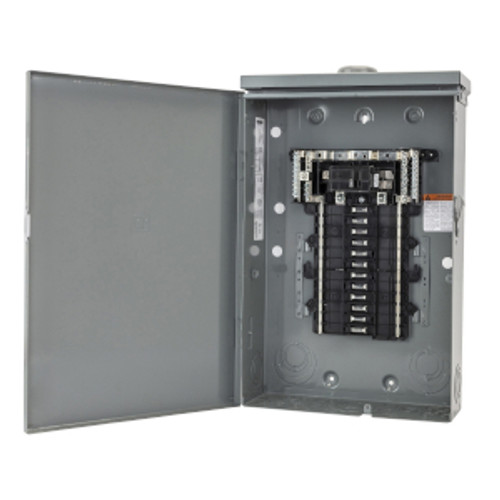

Load center, QO, 1 phase, 20 spaces, 24 circuits, 100A convertible main breaker, PoN, NEMA, UL
- box number : 6
- Brand : Square D
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 45
- Circularity Profile : No need of specific recycling operations
- Depth : 3.7 in (95 mm)
- Device Composition : Grounding bar (ordered separately)
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Global Keywords : 100 a
- Global Keywords : 1ph
- Global Keywords : 20sp
- Global Keywords : 24CIR
- Global Keywords : 24ckt
- Global Keywords : Loadcenter
- Global Keywords : MB
- Global Keywords : NEMA 1
- Global Keywords : Plug on neutral
- Global warming ; Total life cycle? : 45 kg CO2 eq.
- Height : 17.9 in (455 mm)
- Line Rated Current : 100 A
- load center type : PoN Convertible Mains (breaker)
- Manufacturer : Schneider Electric
- NEMA degree of protection : NEMA 1 indoor enclosure
- Net Weight : 11.795 lb(US) (5.350 kg)
- Number Of Circuits : 24
- number of spaces : 20
- number of tandem circuit breakers : 4
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Phase : 1 phase
- Product Certifications : UL Listed
- Product Or Component Type : Load Center
- short-circuit current : 22 kA
- Take-back : No
- Temperature Ambient Operating Range : 104 °F (40 °C)
- Temperature Ambient Operating Range : 23 °F (-5 °C)
- Tightening Torque : Cover 20 lb.in
- UNSPSC Classification v19 : 39121101
- UNSPSC Classification v23 : 39121101
- Width : 14.3 in (362 mm)
