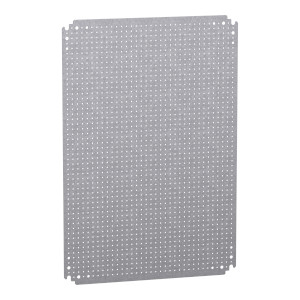

Microperforated mounting plate H700xW500 w/holes diam 3,6mm on 12,5mm pitch

Accessory / Separate Part Category :

Mounting accessory

Application :

Multi-purpose

Brand :

Schneider Electric

By Schneider :

Yes

Circularity Profile :

No need of specific recycling operations

Depth :

4.9 in (125 mm)

enclosure nominal dimensions :

- H: 27.6 in (700 mm) W: 19.7 in (500 mm)

Final Result for Flywheel performance tracking :

Non Flywheel

Fixing Mode :

By fixing element

Fixing Mode :

Screwed on backstuds M8

Global Keywords :

Enclosure Accessory

Global Keywords :

Microperforated mounting plate

Global Keywords :

Mounting accessory

Global Keywords :

Mounting plate

Global Keywords :

NSYMF75

Global Keywords :

PanelSeT accessory

Height :

26.2 in (665 mm)

Manufacturer :

Square D

Material :

galvanised steel

Mounting Location :

Direct fixing on backstuds

Mounting Location :

Step slide

mounting plate description :

Microperforated

Net Weight :

9.7 lb(US) (4.4 kg)

Number of Units in Package 2 :

160

Package 2 Height :

17.72 in (45.000 cm)

Package 2 Length :

47.24 in (120.000 cm)

Package 2 Weight :

1631.422 lb(US) (740.000 kg)

Package 2 width :

39.37 in (100.000 cm)

Packaging made with recycled cardboard :

No

Packaging without single use plastic :

No

permanent permissible load :

297.6 lb(US) (135 kg)

Product Or Component Type :

Mounting plate

Quantity Per Set :

Set of 1

Range :

PanelSeT

Range Compatibility :

PanelSeT CRN

Range Compatibility :

PanelSeT PLM

Range Compatibility :

PanelSeT S3D

REACh free of SVHC :

Yes

Take-back :

No

thickness :

0.07 in (1.8 mm)

Toxic heavy metal free :

Yes

Unit Type of Package 2 :

PAM

UNSPSC Classification v19 :

39121323

UNSPSC Classification v23 :

39121323

Volume of Package 2 :

540000.000 cm3

Warranty :

18 months

Width :

17.7 in (450 mm)
