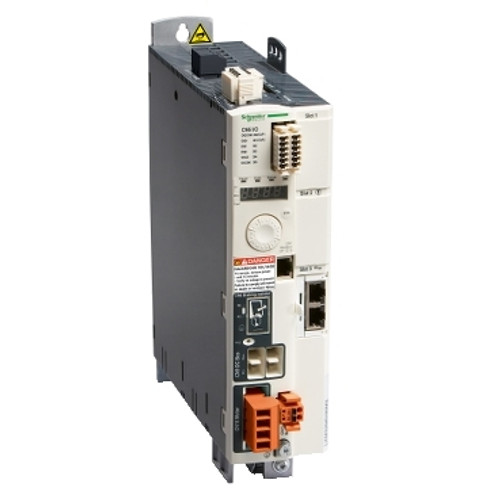

Motion servo drive - Lexium 32, Three-phase supply voltage 208/480V, 3 kW| Range of product : Lexium 32 Product or component type : Motion servo drive Device short name : LXM32M Format of the drive : Book Network number of phases : 3ph [Us] rated supply voltage : 200...240 V - 15...10 %, 380...480 V - 15...10 % Supply voltage limits : 323…528 V, 170…264 V Supply frequency : 50/60 Hz - 5...5 % Network frequency : 47.5...63 Hz EMC filter : Integrated Continuous output current : 10 A at 8 kHz Output current 3s peak : 30 A for 5 s Maximum continuous power : 2600 W at 230 V, 13000 W at 400 V Nominal power : 2 kW at 230 V 8 kHz, 3 kW at 400 V 8 kHz Switching frequency : 8 kHz Overvoltage category : III Maximum leakage current : 30 mA
- Brand : Schneider Electric
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 4967
- Communication Interface : Analog I/O, with separated communication card
- Communication Interface : CANmotion, with separated communication card
- Communication Interface : CANopen, with separated communication card
- Communication Interface : Digital I/O, Integrated
- Communication Interface : EtherCAT, with separated communication card
- Communication Interface : Ethernet/IP, with separated communication card
- Communication Interface : Modbus TCP, with separated communication card
- Communication Interface : Profibus, with separated communication card
- control signal type : Pulse train output (PTO) RS422
- control signal type : Pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (open collector)
- control signal type : Pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (push-pull)
- control signal type : Pulse/direction (P/D), A/B, CW/CCW RS422
- control signal type : Servo motor encoder feedback
- Depth : 9.3 in (237 mm)
- Derating altitude scale : 295.3 ft (90.0 m)
- Derating altitude start : 3280.8 ft (1000.0 m)
- Device Short Name : LXM32M
- Discrete Input Logic : Positive compliment of STO_A, compliment of STO_B) 15 V EN/IEC 61131-2 type 1
- Discrete Input Logic : Positive DI)> 19 V
- Discrete Input Logic : Positive or negative DI) 15 V EN/IEC 61131-2 type 1
- Discrete Input Number : 2 capture
- Discrete Input Number : 2 safety
- Discrete Input Number : 4 logic
- Discrete Input Type : Capture CAP
- Discrete Input Type : Logic DI
- Discrete Input Type : Safety compliment of STO_A, compliment of STO_B
- Discrete Input Voltage : 24 V DC capture
- Discrete Input Voltage : 24 V DC logic
- Discrete Input Voltage : 24 V DC safety
- discrete output logic : Positive or negative DO)EN/IEC 61131-2
- Discrete Output Number : 3
- Discrete Output Type : Logic DO)24 V DC
- drive voltage drop coefficient : 0.95
- Electrical Connection : Terminal 3 mm², AWG 12 CN8)
- Electrical Connection : Terminal 5 mm², AWG 10 CN1)
- Electrical Connection : Terminal 5 mm², AWG 10 CN10)
- electrical isolation : Between power and control
- Electromagnetic Compatibility : 1.2/50 µs shock waves immunity test, level 3 EN/IEC 61000-4-5
- Electromagnetic Compatibility : Conducted EMC, category C2 EN/IEC 61800-3
- Electromagnetic Compatibility : Conducted EMC, class A group 1 EN 55011
- Electromagnetic Compatibility : Conducted EMC, class A group 2 EN 55011
- Electromagnetic Compatibility : Conducted EMC, environment 2 category C3 EN/IEC 61800-3
- Electromagnetic Compatibility : Conducted EMC, environments 1 and 2 EN/IEC 61800-3
- Electromagnetic Compatibility : Electrical fast transient/burst immunity test, level 4 EN/IEC 61000-4-4
- Electromagnetic Compatibility : Electrostatic discharge immunity test, level 3 EN/IEC 61000-4-2
- Electromagnetic Compatibility : Radiated EMC, category C3 EN/IEC 61800-3
- Electromagnetic Compatibility : Radiated EMC, class A group 2 EN 55011
- Electromagnetic Compatibility : Susceptibility to electromagnetic fields, level 3 EN/IEC 61000-4-3
- EMC filter : Integrated
- emc filter compatibility : Type 022
- Environmental Characteristic : Classes 3C1 conforming to IEC 60721-3-3
- field weakening : No
- Final Result for Flywheel performance tracking : Edge control
- format of the drive : Book
- Global Keywords : 0.15kW to 11kW power rating
- Global Keywords : BMH servo motor
- Global Keywords : Book-size format
- Global Keywords : BSH servo motor
- Global Keywords : Ecostruxure Machine Expert Motion
- Global Keywords : Embedded canopen and canmotion port
- Global Keywords : Integrated CANopen communication interface
- Global Keywords : Integrated sercos communication interface
- Global Keywords : Lexium
- Global Keywords : LXM32
- Global Keywords : LXM32A
- Global Keywords : LXM32C
- Global Keywords : LXM32M
- Global Keywords : LXM32S
- Global Keywords : Motion control
- Global Keywords : Safe Torque Off safety function
- Global Keywords : Sercos interface
- Global Keywords : Servo drive
- Global Keywords : Servo drives
- Global Keywords : SinCos Hiperface sensor
- Global Keywords : SoMovesoftware
- Global Keywords : Standard IEC/EN 61508 level SIL3
- Global Keywords : STO
- Global warming ; Total life cycle? : 4 967 kg CO2 eq.
- Height : 10.6 in (270 mm)
- IP Degree of Protection : IP20 conforming to EN/IEC 60529
- IP Degree of Protection : IP20 conforming to EN/IEC 61800-5-1
- line current : 11.1 A 77 % 400 V, with external line choke 1 mH
- line current : 7 A 152 % 480 V, without line choke
- line current : 8.3 A 148 % 400 V, without line choke
- line current : 9.2 A 59 % 208 V, with external line choke 1 mH
- line current : 9.6 A 85 % 480 V, with external line choke 1 mH
- line current : 9.8 A 128 % 208 V, without line choke
- Line Rated Current : 10.0 A
- Manufacturer : Schneider Electric
- Marking : CE
- maximum [In] rated current : 10.0 A
- maximum ambient air temperature for operation : 122 °F (50.0 °C)
- maximum current Irms : 30.0 A
- Maximum Leakage Current : 30 mA
- Maximum operational altitude : 6561.7 ft (2000.0 m)
- Minimum ambient air temperature for operation : 32 °F (0.0 °C)
- Net Weight : 6.0 lb(US) (2.7 kg)
- Network Frequency : 47.5...63 Hz
- network number of phases : 3
- nominal power : 2 kW 208 V 8 kHz
- nominal power : 3 kW 400 V 8 kHz
- nominal power : 3 kW 480 V 8 kHz
- Nominal voltage : 208 V three phase
- Nominal voltage : 400 V three phase
- Nominal voltage : 480 V three phase
- number of inputs/outputs : 4 DI + 2 CI + 3 DO
- Number of Units in Package 2 : 2
- Number of Units in Package 3 : 16
- Operating Altitude : > 3280.84...9842.52 ft (> 1000...3000 m) with conditions
- operating position : Vertical +/- 10 degree
- output current 3s peak : 30 A 208 V 5 s
- output current 3s peak : 30 A 480 V 5 s
- output current 3s peak : 30.0 A
- output current 3s peak 2 : 30 A
- output current 3s peak 3 : 30 A
- Overvoltage Category : III
- Package 2 GTIN : 43606480076891
- Package 2 Height : 11.81 in (30.000 cm)
- Package 2 Length : 15.75 in (40.000 cm)
- Package 2 Weight : 15.984 lb(US) (7.250 kg)
- Package 2 width : 11.81 in (30.000 cm)
- Package 3 GTIN : 73606480076892
- Package 3 Height : 29.53 in (75.000 cm)
- Package 3 Length : 31.50 in (80.000 cm)
- Package 3 Weight : 146.590 lb(US) (66.492 kg)
- Package 3 width : 23.62 in (60.000 cm)
- Packaging made with recycled cardboard : Yes
- Packaging without single use plastic : Yes
- Phase : Three phase
- Pollution Degree : 2 EN/IEC 61800-5-1
- Product Certifications : CSA
- Product Certifications : TÃœV
- Product Certifications : UL
- Product Compatibility : Servo motor BMH 3.9 in (100 mm), 3
- Product Compatibility : Servo motor BMH 5.5 in (140 mm), 3
- Product Compatibility : Servo motor BMH 7.5 in (190 mm), 1
- Product Compatibility : Servo motor BMH 7.5 in (190 mm), 2
- Product Compatibility : Servo motor BMH 7.5 in (190 mm), 3
- Product Compatibility : Servo motor BMH 8.07 in (205 mm), 3
- Product Compatibility : Servo motor BSH 5.5 in (140 mm), 2
- Product Compatibility : Servo motor BSH 5.5 in (140 mm), 3
- Product Compatibility : Servo motor BSH 5.5 in (140 mm), 4
- Product Or Component Type : Motion servo drive
- Protection Type : Against reverse polarity inputs signal
- Protection Type : Against short-circuits outputs signal
- PVC free : Yes
- Relative Humidity : Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3
- response time on output : 250 µs DO)discrete
- Safety Function : SLS (safe limited speed), with separated eSM safety card
- Safety Function : SOS (safe operating stop), with separated eSM safety card
- Safety Function : SS1 (safe stop 1), with separated eSM safety card
- Safety Function : SS2 (safe stop 2), with separated eSM safety card
- Safety Function : STO (safe torque off), Integrated
- safety level : PL = e ISO 13849-1
- safety level : SIL 3 EN/IEC 61508
- sampling duration : 0.25 ms
- sampling duration : DI 0.25 ms discrete
- SCIP Number : C0961927-b9e6-4f64-bd63-334df07b6de6
- shock resistance : 15 gn 11 ms EN/IEC 60028-2-27
- Signalling Function : Display of faults 7 segments
- Standards : EN/IEC 61800-3
- Standards : EN/IEC 61800-5-1
- Status Led : 1 LED (Red) servo drive voltage
- Supply Frequency : 50/60 Hz - 5...5 %
- Supply Voltage : 200-240 V three phase
- Supply Voltage : 380-480 V three phase
- supply voltage description : Three phase 230 V
- supply voltage description : Three phase 400 V
- supply voltage limits : 170-264 V
- supply voltage limits : 323-528 V
- Sustainable packaging : Yes
- Switching Frequency : 8 kHz
- switching frequency 2 : 8 kHz
- switching frequency 3 : 8 kHz
- Take-back : No
- Temperature Shipping and Storage Range : -13-158 °F (-25-70 °C)
- Tightening Torque : CN1 6.2 lbf.in (0.7 N.m)
- Tightening Torque : CN10 6.2 lbf.in (0.7 N.m)
- Tightening Torque : CN8 4.4 lbf.in (0.5 N.m)
- Type Of Cable : Single-strand IEC cable 122 °F (50 °C)) copper 90 °C XLPE/EPR
- type of cooling : Integrated fan
- Unit Type of Package 2 : S03
- Unit Type of Package 3 : P06
- UNSPSC Classification v19 : 26111515
- UNSPSC Classification v23 : 26111515
- vibration resistance : 1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6
- vibration resistance : 1.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6
- Volume of Package 2 : 36000.000 cm3
- Volume of Package 3 : 360000.000 cm3
- Warranty : 18 months
- Width : 2.7 in (68 mm)
