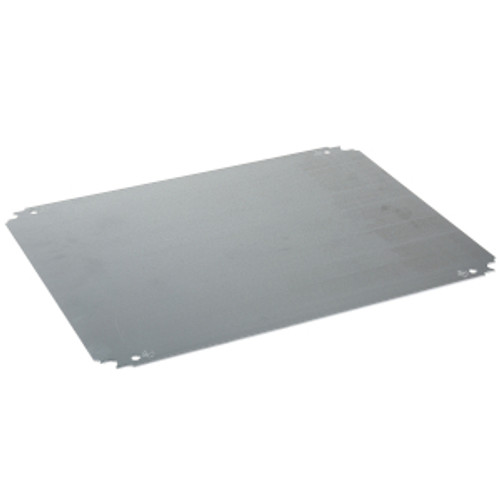

Plain mounting plate H1000xW1000mm made of galvanised sheet steel

Accessory / Separate Part Category :

Mounting accessory

Application :

Multi-purpose

Brand :

Schneider Electric

By Schneider :

Yes

Carbon footprint (kg CO2 eq, Total Life cycle) :

195

Circularity Profile :

No need of specific recycling operations

enclosure nominal dimensions :

- H: 39.4 in (1000 mm) W: 39.4 in (1000 mm)

Final Result for Flywheel performance tracking :

Non Flywheel

Fixing Mode :

By fixing element

Fixing Mode :

Screwed on backstuds M8

Global Keywords :

Enclosure Accessory

Global Keywords :

Galvanised steel mounting plate

Global Keywords :

Mounting accessory

Global Keywords :

Mounting plate

Global Keywords :

NSYMM1010

Global Keywords :

PanelSeT accessory

Global Keywords :

Plain mounting plate

Global warming ; Total life cycle? :

195 kg CO2 eq.

Height :

37.4 in (950 mm)

Manufacturer :

Schneider Electric

Material :

galvanised steel

Mounting Location :

Direct fixing on backstuds

Mounting Location :

Step slide

mounting plate description :

Plain

Net Weight :

39.9 lb(US) (18.1 kg)

Number of Units in Package 2 :

12

Package 2 Height :

24.41 in (62.000 cm)

Package 2 Length :

47.24 in (120.000 cm)

Package 2 Weight :

542.338 lb(US) (246.000 kg)

Package 2 width :

39.37 in (100.000 cm)

Packaging made with recycled cardboard :

No

Packaging without single use plastic :

No

permanent permissible load :

396.8 lb(US) (180 kg)

Product Or Component Type :

Mounting plate

Quantity Per Set :

Set of 1

Range :

PanelSeT

Range Compatibility :

PanelSeT CRN PanelSeT CRN

Range Compatibility :

PanelSeT S3D PanelSeT S3D

Range Compatibility :

PanelSeT Thalassa PLM PLM

REACh free of SVHC :

Yes

Take-back :

No

thickness :

0.07 in (1.8 mm)

Toxic heavy metal free :

Yes

Unit Type of Package 2 :

PAM

UNSPSC Classification v19 :

39121321

UNSPSC Classification v23 :

39121321

Volume of Package 2 :

744000.000 cm3

Warranty :

18 months

Width :

37.4 in (950 mm)
