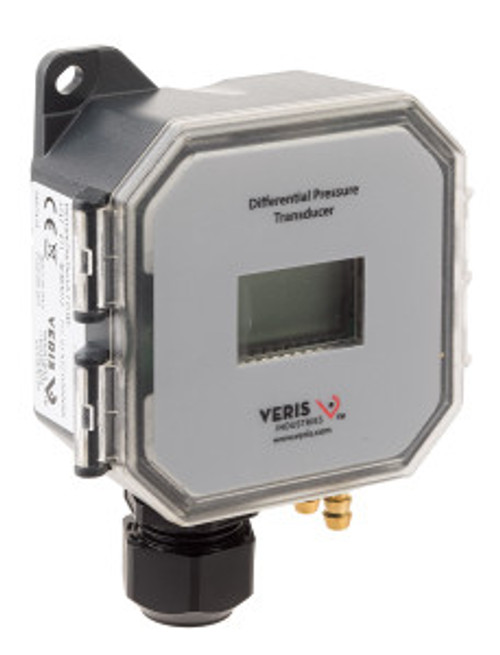

Pressure-Velocity Transducer|Dry|Duct|LCD|NIST|0-10 in. WC
- [Us] rated supply voltage : 12...30 V DC~~
- [Us] rated supply voltage : 24 V AC
- Analogue Output Type : 0...10 V DC
- Analogue Output Type : 0...5 V DC
- Analogue Output Type : 4...20 mA
- Application : Air Velocity Monitoring
- Application : Duct Pressure Monitoring
- Application : Fan Monitoring
- Application : Filter Monitoring
- Application : VAV Control
- Brand : Veris Industries
- Burst Pressure : 5 psid (34.5 kPa)
- By Schneider : Yes
- Carbon footprint (kg CO2 eq, Total Life cycle) : 1
- Controlled Fluid : Air
- Controlled Fluid : Gas
- Depth : 1.7 in (42 mm)
- Display Size : 17 mm x 28 mm (0.7 " x 1.1 ")
- Display Type : LCD
- Electrical Connection : - AWG 22
- Final Result for Connectable : Not connectable
- Final Result for Flywheel performance tracking : Non Flywheel
- Fitting Size : 6 mm (0.24")
- Fitting Type : Male
- Global warming ; Total life cycle? : 1 kg CO2 eq.
- Height : 4.4 in (112 mm)
- Humidity Calibration Certificate : NIST
- Indivisible Sale Qty : 1
- IP Degree of Protection : IP65
- Local Signalling : Red/green/blue LED
- Location : Plant Room
- Manufacturer : Schneider Electric
- Material : ABS thermoplastic: enclosure
- Material : Brass: Fitting
- Mounting Support : Duct
- Net Weight : 4.4 oz (125 g)
- Output Type : Analog
- Packaging made with recycled cardboard : No
- Packaging without single use plastic : No
- Pressure Measurement Accuracy : +/- 1 % FS
- Pressure Measurement Drift : Less than 0.5%
- Pressure Measurement Range : 0...1" W.C. (0...250 Pa)
- Pressure Measurement Range : 0...10" W.C. (0...2500 Pa)
- Pressure Measurement Range : 0...2.5" W.C. (0...500 Pa)
- Pressure Measurement Range : 0...5" W.C. (0...1000 Pa)
- Probe Diameter : 0.3 in (7 mm)
- Probe Length : 7.4 in (188 mm)
- Product Certifications : CE
- Product Or Component Type : Sensor
- SCIP Number : 57dc65ec-83cc-4ead-9500-efce8e489275
- Sensor Model : PX3DLN02
- Standards : EN 61000-6-1
- Standards : EN 61000-6-3
- Standards : EN 61326-1
- Standards : EN 61326-2-3
- Take-back : No
- Temperature Ambient Operating Range : -4…140 °F (-20…60 °C)
- Type Of Measurement : Differential Pressure
- Width : 3.5 in (88 mm)
- Wiring Technique : 3-wire
